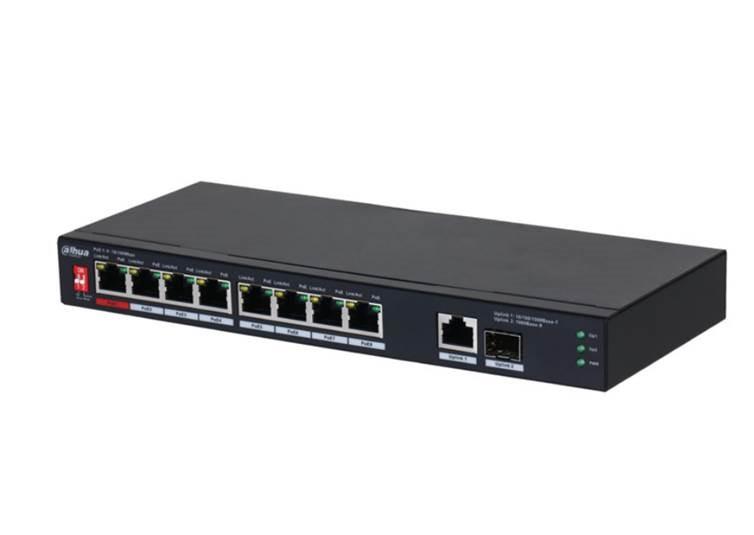

Switch DAHUA PFS3110-8ET1GT1GF-96 Desktop/pedestal 8x10Base-T / 100Base-TX 1x10Base-T / 100Base-TX / 1000Base-T 2x1000Base-T PoE ports 8 96 Watts DH-PFS3110-8ET1GT1GF-96

Description:

> 100 Mbps PoE ports and gigabit uplink ports.
> The red port meets the IEEE 802.3bt standard.
> Power supply supports up to 90 W.
> PoE watchdog monitors the status of terminals in real-time.
> Supports 250 m long-distance power supply.
> Supports the power management policy.
> 8-pin PoE offers better compatibility and reduces cable loss.
> Durable full-metal housing provides great heat dissipation.
Communication Standard IEEE802.3; IEEE802.3u; IEEE 802.3ab; IEEE802.3x
PoE Standard IEEE 802.3af; IEEE 802.3at; Hi-PoE; IEEE 802.3bt
PoE Power 96W, Power supply unit included


Vendor Homepage: www.dahuasecurity.com/products/All-Products/Transmission/PoE-Switches/Desktop-PoE-Switch/PFS3110-8ET1GT1GF-96
Category Code: SWI
CnCode: 85176200
Unit Box Height: 0.09
Unit Box Length: 0.285
Unit Box Width: 0.24
Desktop/pedestal: Yes
1000Base-T: 2
10Base-T / 100Base-TX: 8
10Base-T / 100Base-TX / 1000Base-T: 1
IEEE 802.3: Yes
IEEE 802.3ab: Yes
IEEE 802.3u: Yes
IEEE 802.3x: Yes
Model name: PFS3110-8ET1GT1GF-96
Primary port count: 8
PoE ports: 8
PoE power budget: 96
Switching capacity: 5.6
Forwarding rate: 4.17
Dimensions: 240 × 105 × 28mm
Units per Shipping Box: 1
Unit Calculated Volume: 0.006156
Product Net Weight: 0.65
Unit Calculated Weight: 1.38
