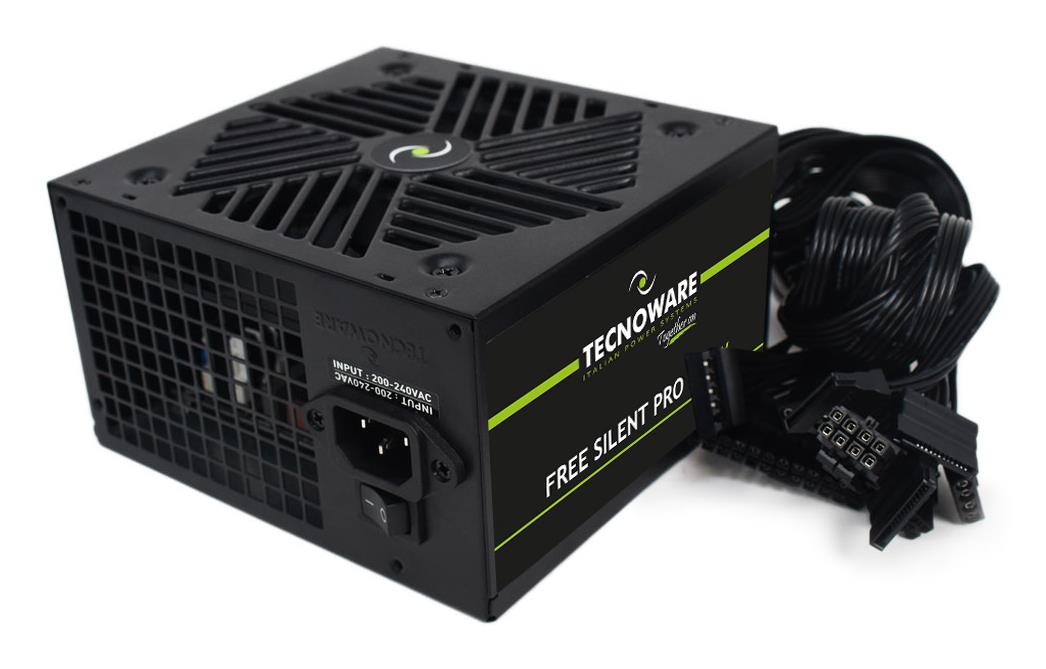

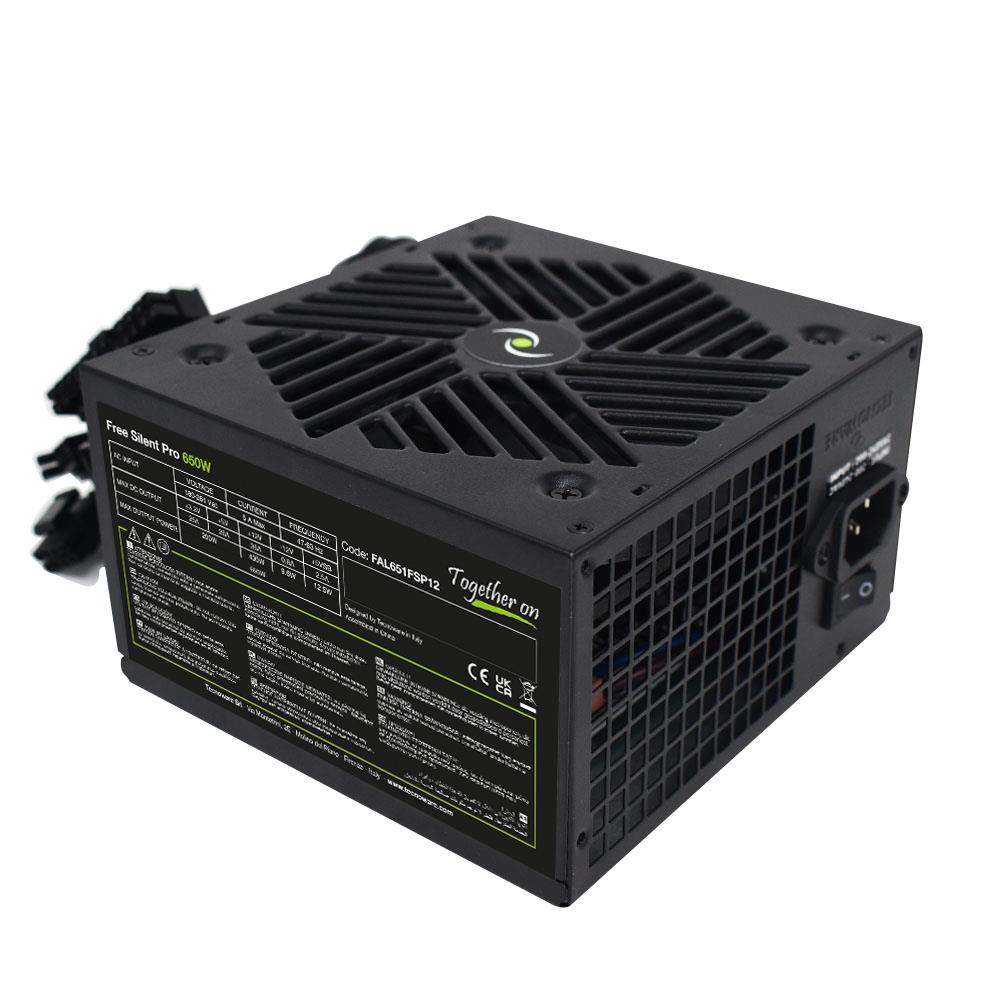

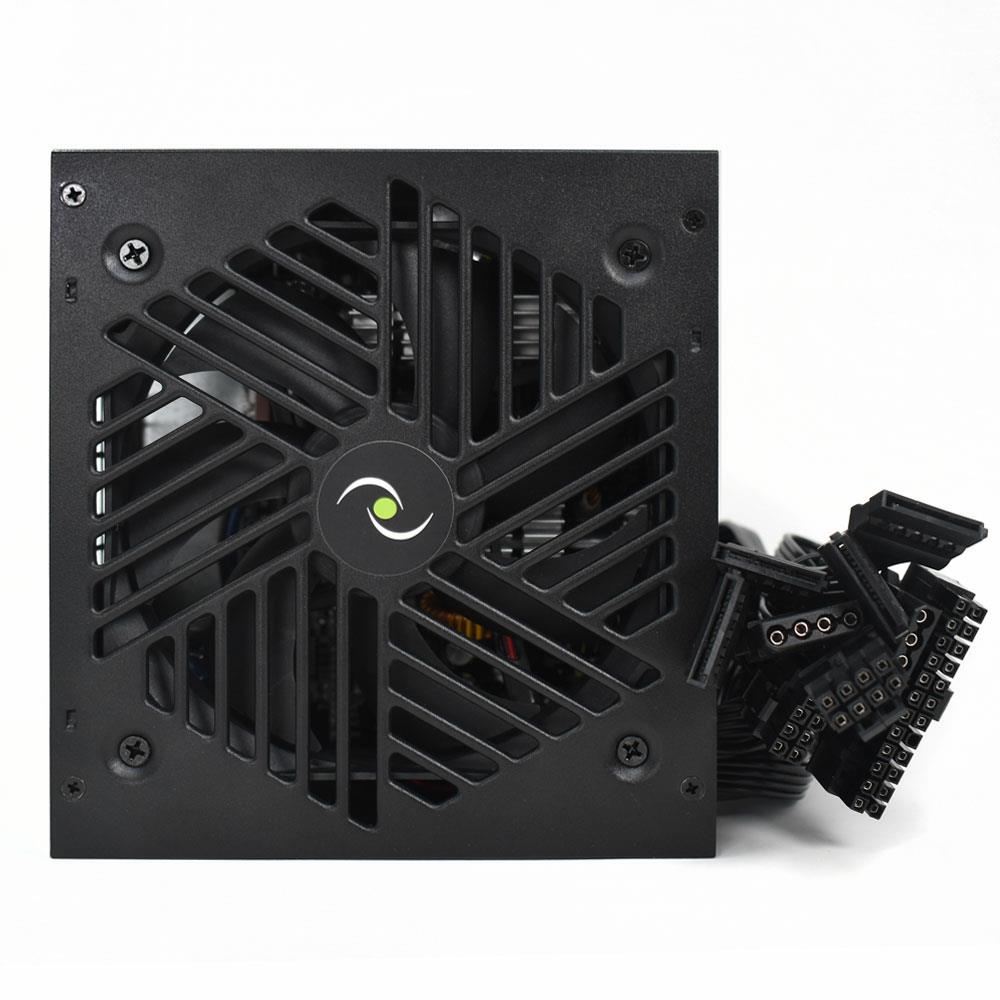

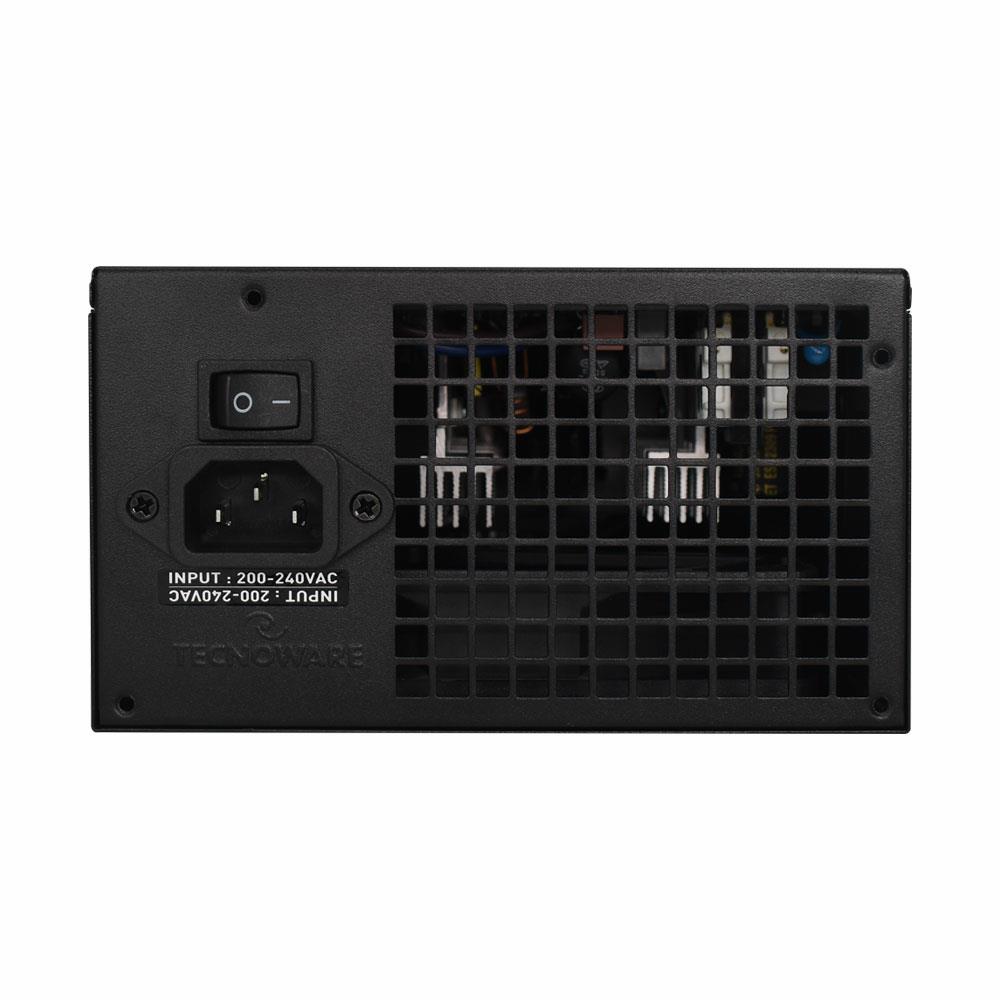

Power Supply TECNOWARE ATX PC 180 – 264 V 650 W FAL651FSP12

Description:

Internal power supply for personal computer, power 650W, input voltage 230 Vac, 50/60 Hz, conforms to ATX 12V v.2.31 specifications, main switch, surge protection, overload protection, short circuit protection, high MTBF, high reliability, quiet operation, 12 cm silent fan, temperature control of fan speed, Flat type connection cables from 500mm to 800mm, 1 x 20+4-pin connector, 1 x 12V 4+4-pin connector, 1 x 6+2 PCI-E connector, 2 x Molex connectors, 4 x Sata connector, dimensions 150x140x86 mm, weight 1.0 Kg, black color, CE certification, RoHS.

• Internal Power Supply for Computers
• High Efficiency (>85%) and High Operation Noise
• Active PFC >0.9
• Dimensions: 140x86x150 mm (WxHxD)
• Input voltage 230 Vac 50Hz
• Temperature control of the fan speed
• Flat connection cables from 500mm to 800mm
• Surge protection
• Overload protection
• Short circuit protection

Summary: Tecnoware FAL651FSP12. Total power: 650 W, AC input voltage: 180 – 264 V, AC input frequency: 47 – 63 Hz. Motherboard power connector: 24-pin ATX. Purpose: PC, Power supply unit (PSU) form factor: ATX. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
Vendor Homepage: https://www.tecnoware.com/en-US/Dettaglio/Articolo/849
Category Code: PSU
CnCode: 85044095
AC input frequency: 47 – 63
AC input voltage: 180 – 264
Efficiency: 85
Max output current (+12V): 26
Max output current (+3.3V): 25
Max output current (+5V): 26
Max output current (+5Vsb): 2.5
Max output current (-12V): 0.8
Power Factor Correction (PFC) type: Active
Power protection features: Overload/Short circuit/Surge protection
Total power: 650
CPU power connector (4+4 pin): Yes
Motherboard power connector: 24-pin ATX
Number of SATA power connectors: 4
PCI Express power connectors (6+2 pin): 1
Peripheral (Molex) power connectors (4-pin): 2
80 PLUS certification: No
ATX version: 2.31
Power supply unit (PSU) form factor: ATX
Purpose: PC
Cooling type: Active
Fan diameter: 120
Number of fans: 1
On/off switch: Yes
Product colour: Black
Operating temperature (T-T): 0 – 40
Storage temperature (T-T): -15 – 40
Depth: 140
Height: 86
Weight: 1000
Width: 150
Units per Shipping Box: 1
Unit Calculated Volume: 0.004
Unit Calculated Weight: 2
