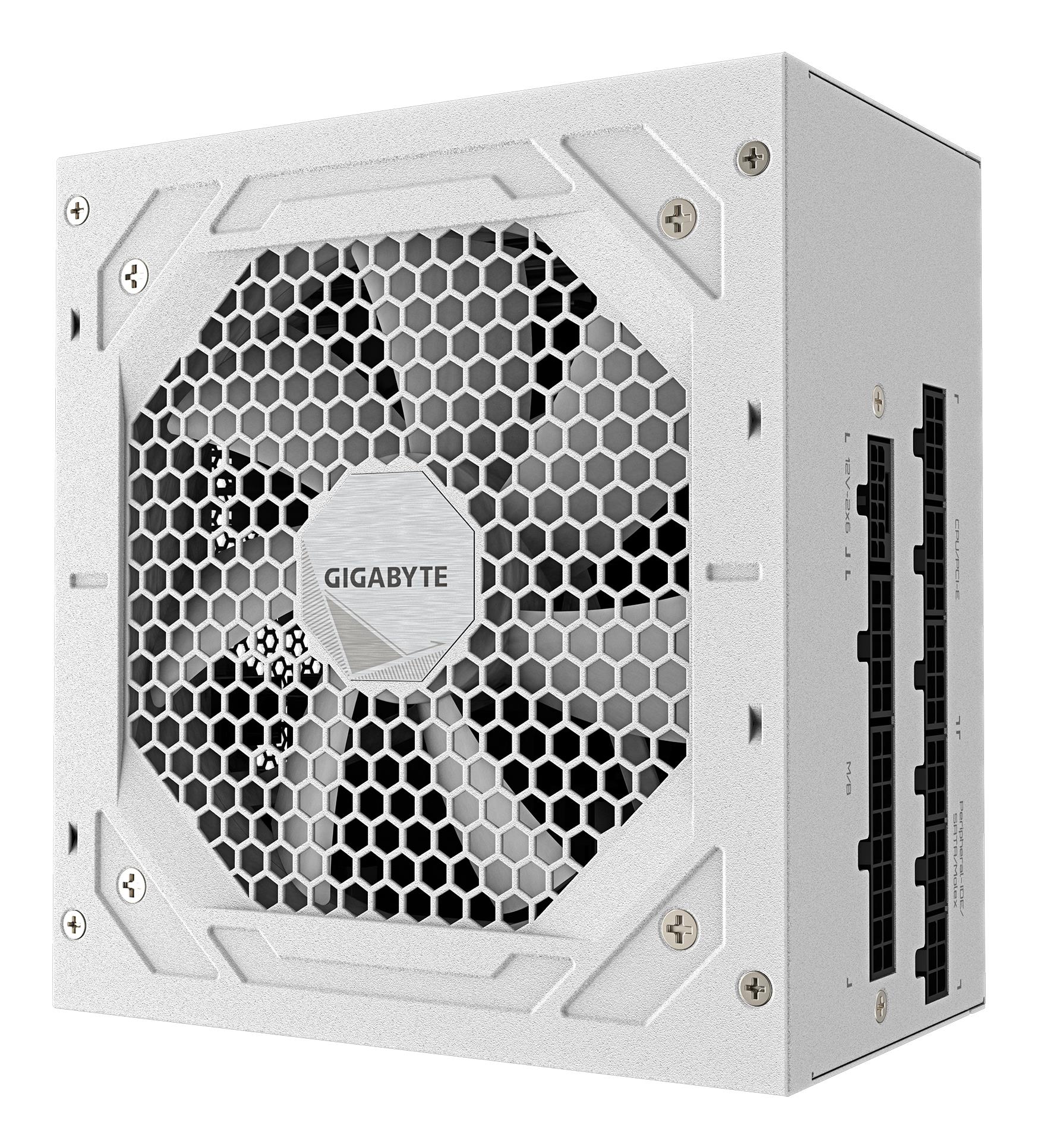

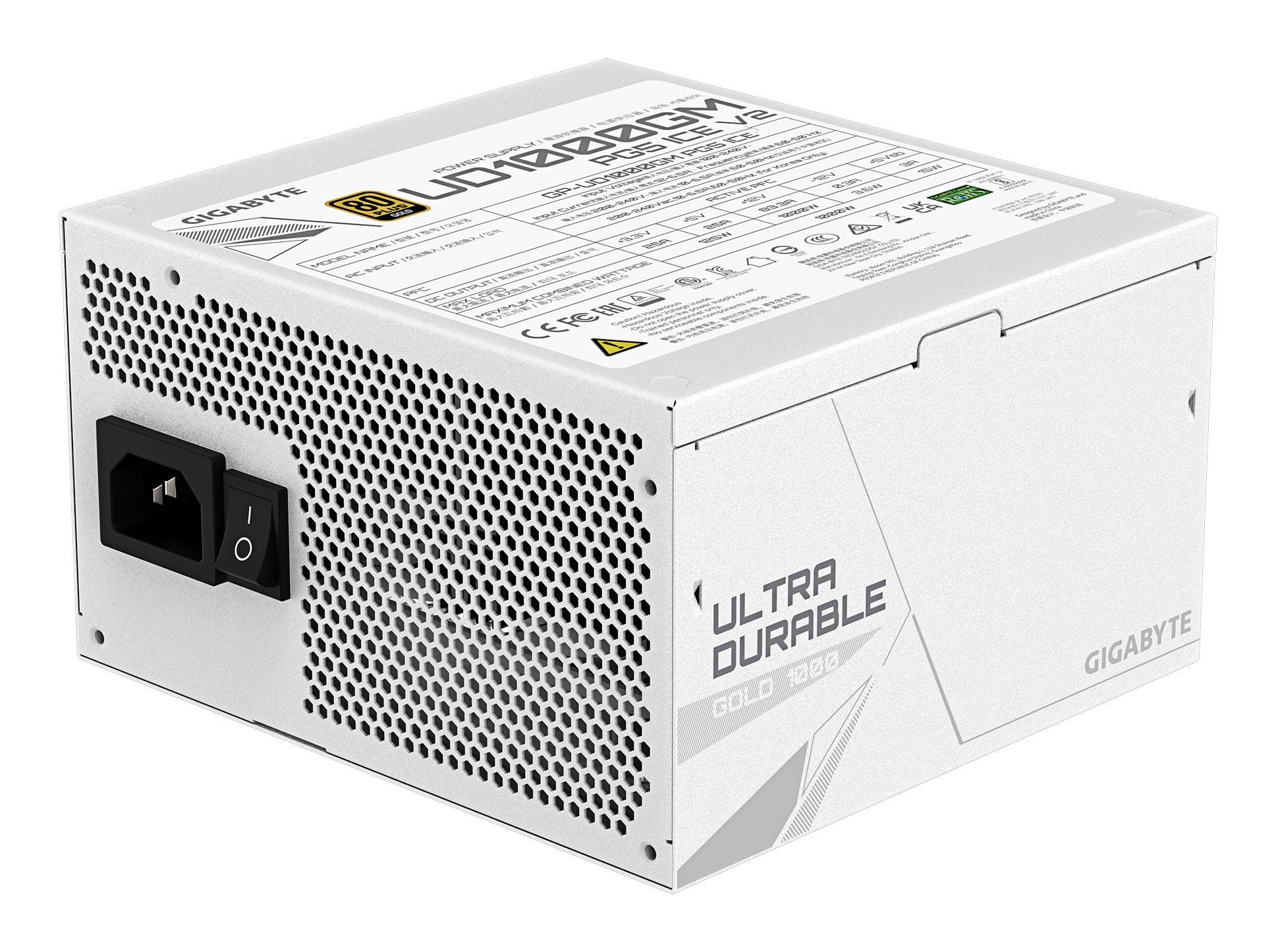

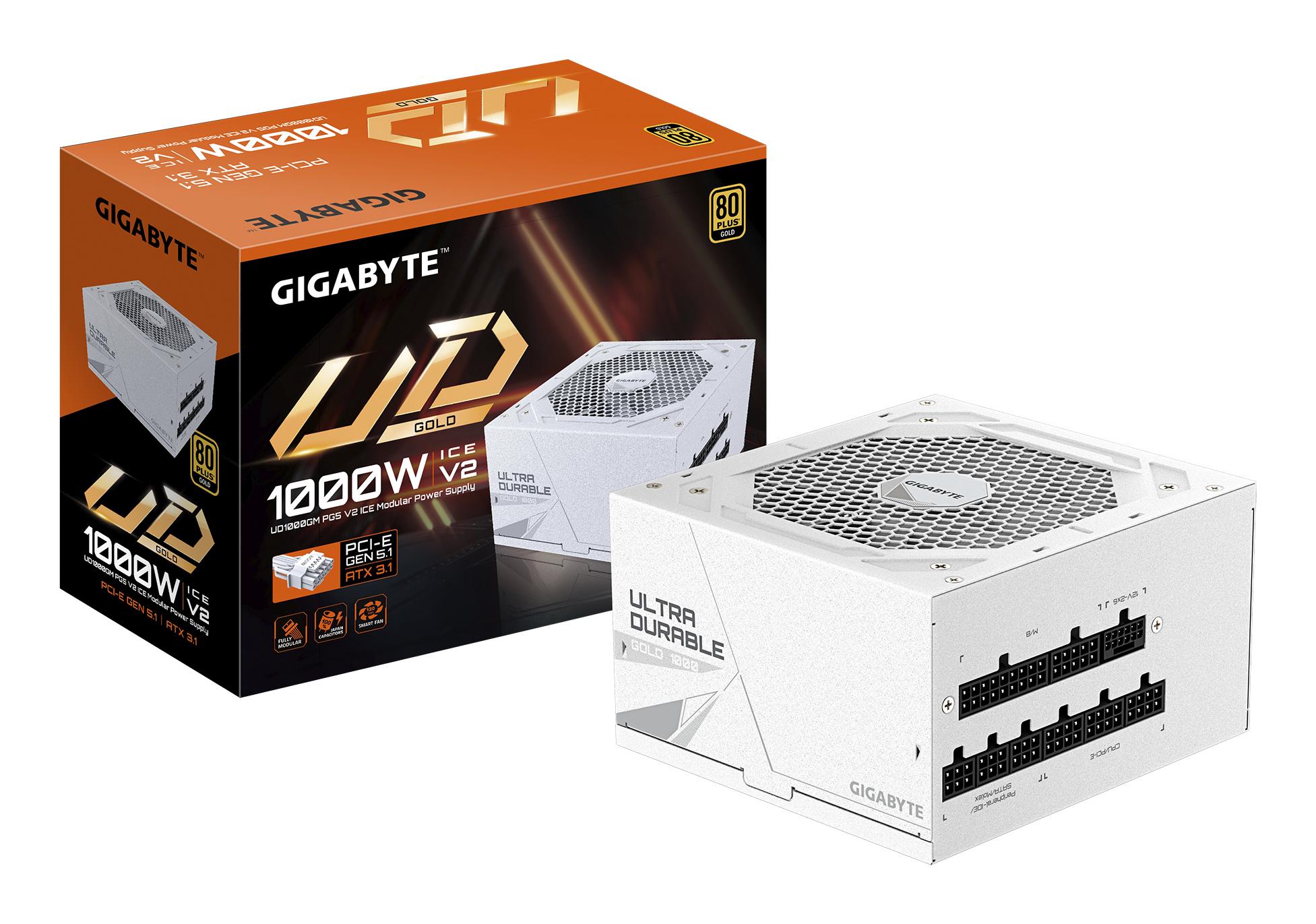

Power Supply GIGABYTE UD1000GM PG5 ICE ATX 3.1 1000 Watts Efficiency 80 PLUS GOLD PFC Active MTBF 100000 hours GP-UD1000GMPG5ICE

Description:

Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.

• Intel ATX 3.1 and PCIe Gen 5.1 ready
• 80 PLUS Gold certified

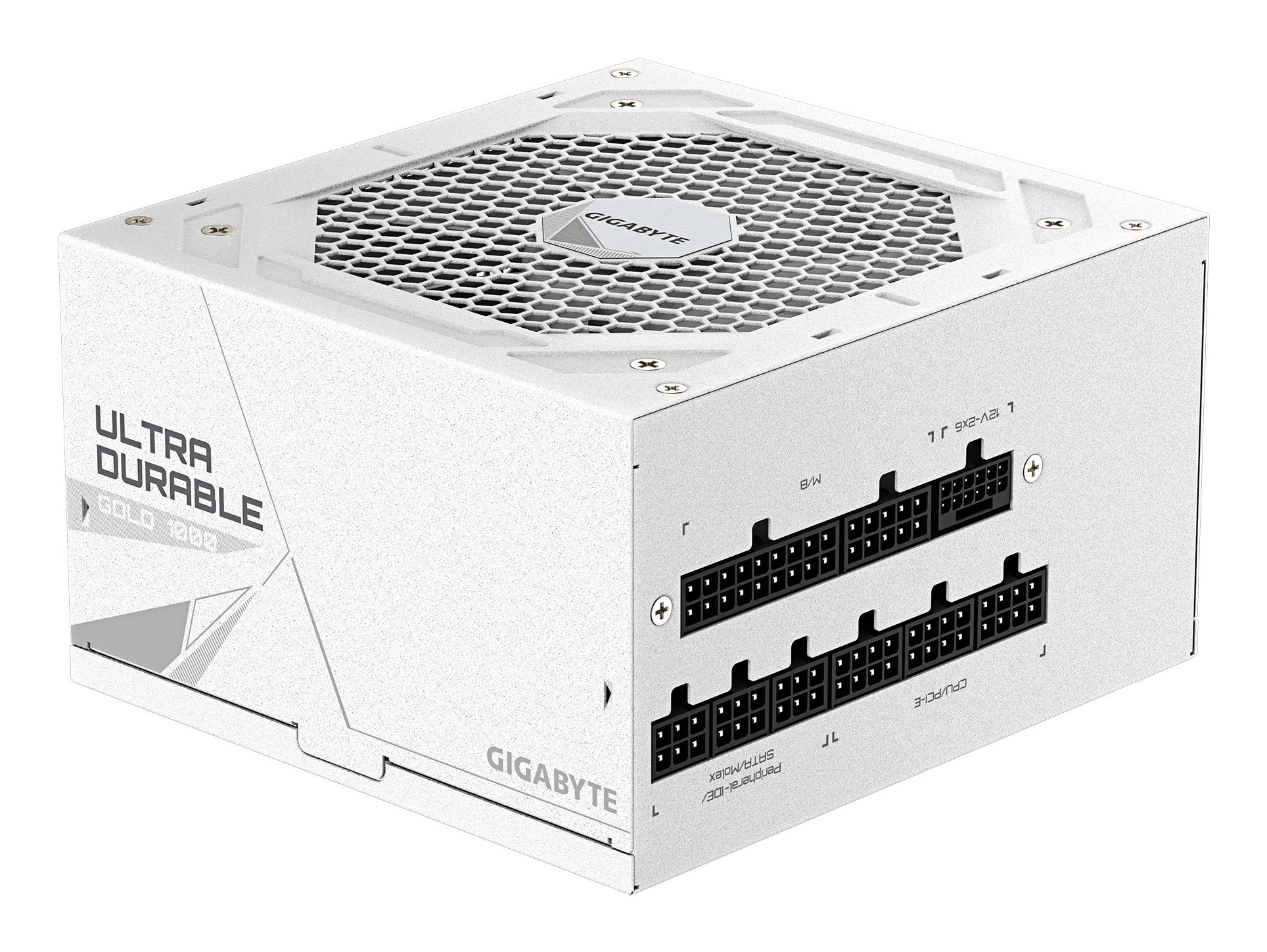

• Fully modular design
• Powerful single +12V rail
• Compact size
• 100% Japanese capacitors

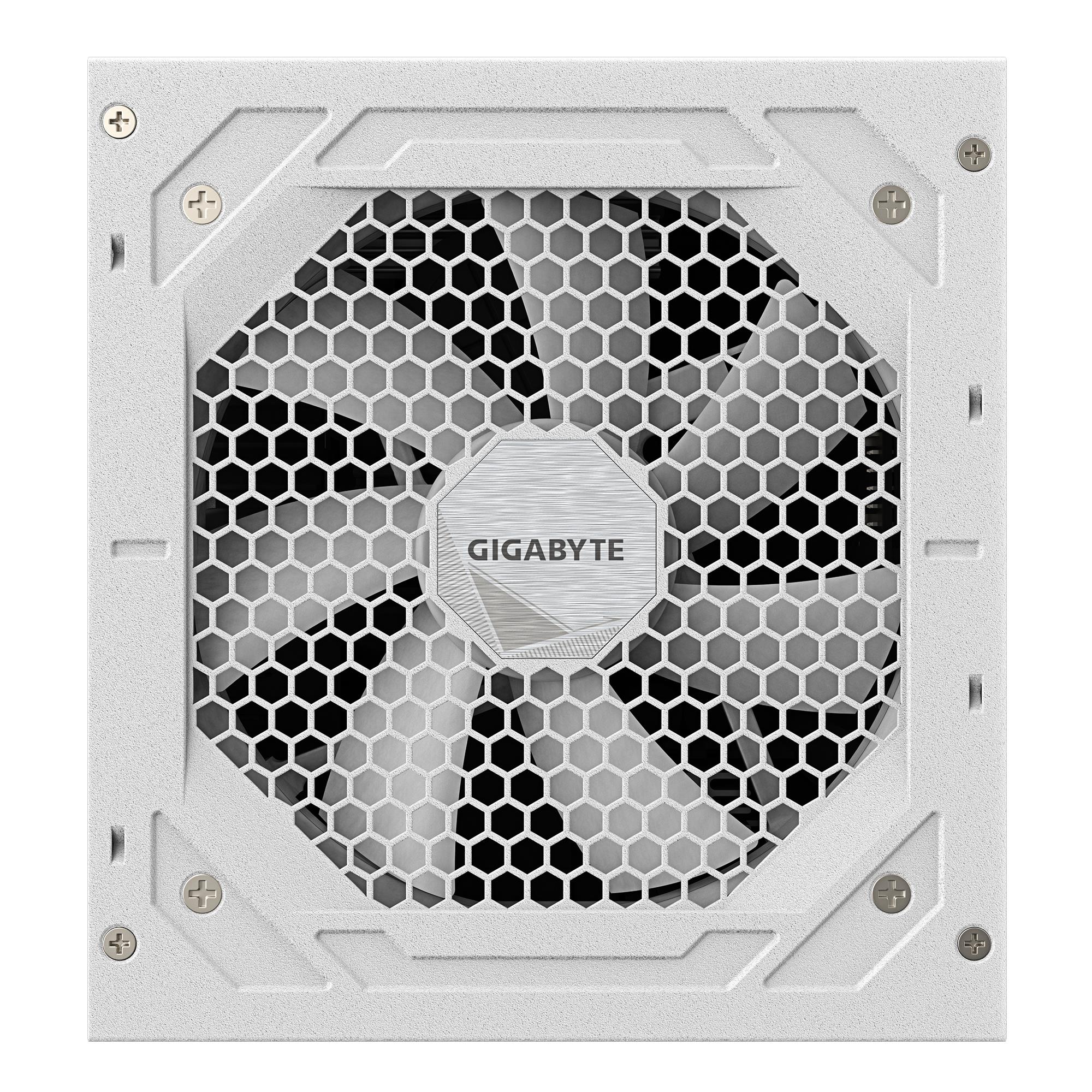

• 120mm smart hydraulic bearing (HYB) fan
• Optimized thermal solution
• OVP/OPP/SCP/UVP/OCP/OTP protection

Summary: GIGABYTE UD1000GM PG5 V2 ICE Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, EU Plug. Total power: 1000 W, AC input voltage: 100 – 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, PCI Express power connectors (12+4 pin) cable length: 700 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: White, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
Vendor Homepage: https://www.gigabyte.com/Power-Supply/GP-UD1000GM-PG5-ICE#kf
Category Code: PSU
CnCode: 85044095
Unit Box Height: 0.215
Unit Box Length: 0.12
Unit Box Width: 0.26

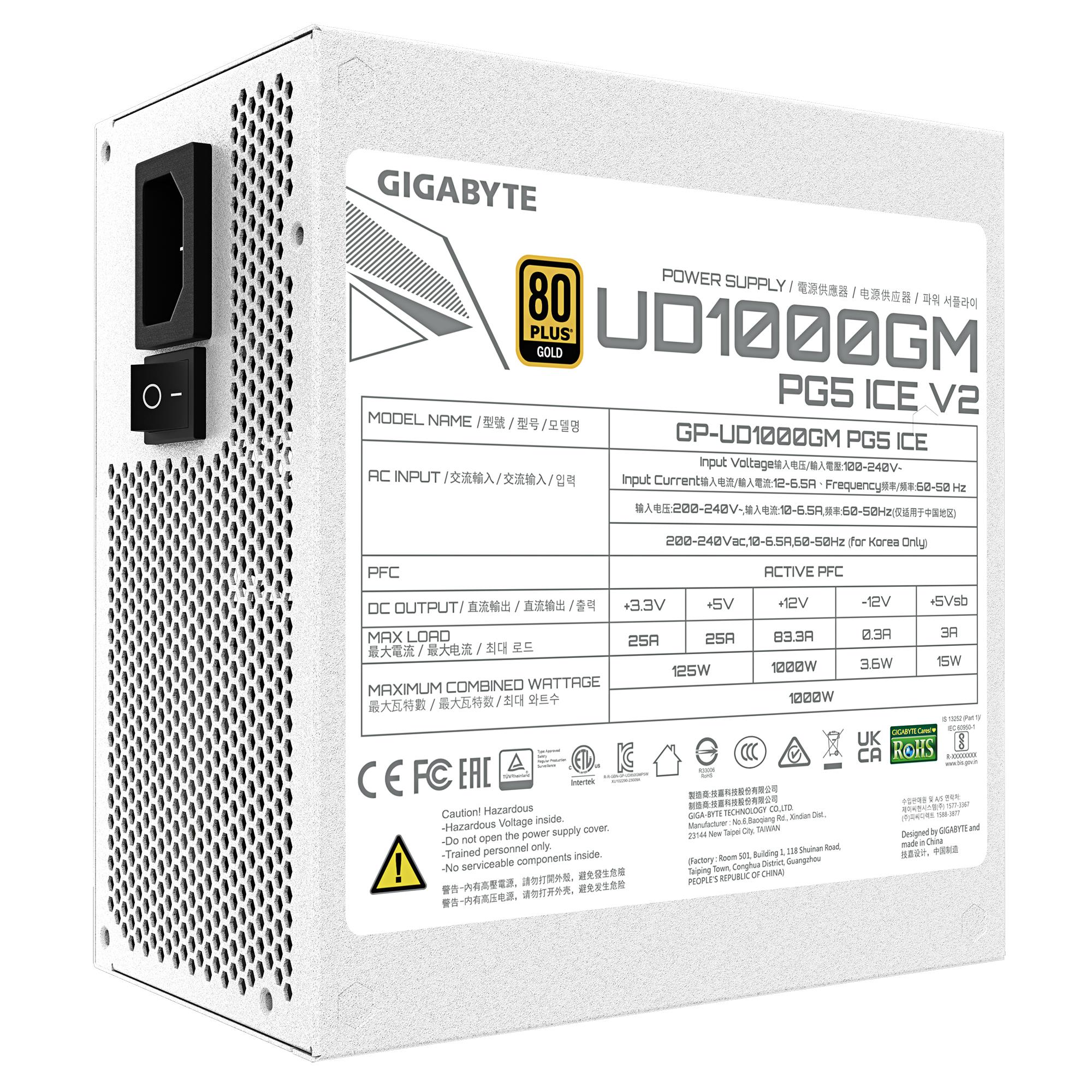

AC input frequency: 50/60
AC input voltage: 100 – 240
Combined power (+12V): 1000
Combined power (+3.3V): 125
Combined power (+5V): 125
Combined power (+5Vsb): 15
Combined power (-12V): 3.6
Efficiency: 90
Hold time: 16
Input current: 15 – 6.5
Max output current (+12V): 83.3
Max output current (+3.3V): 25
Max output current (+5V): 25
Max output current (+5Vsb): 3
Max output current (-12V): 0.3
Power factor: 0.9
Power Factor Correction (PFC) type: Active
Power protection features: Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage
Total power: 1000

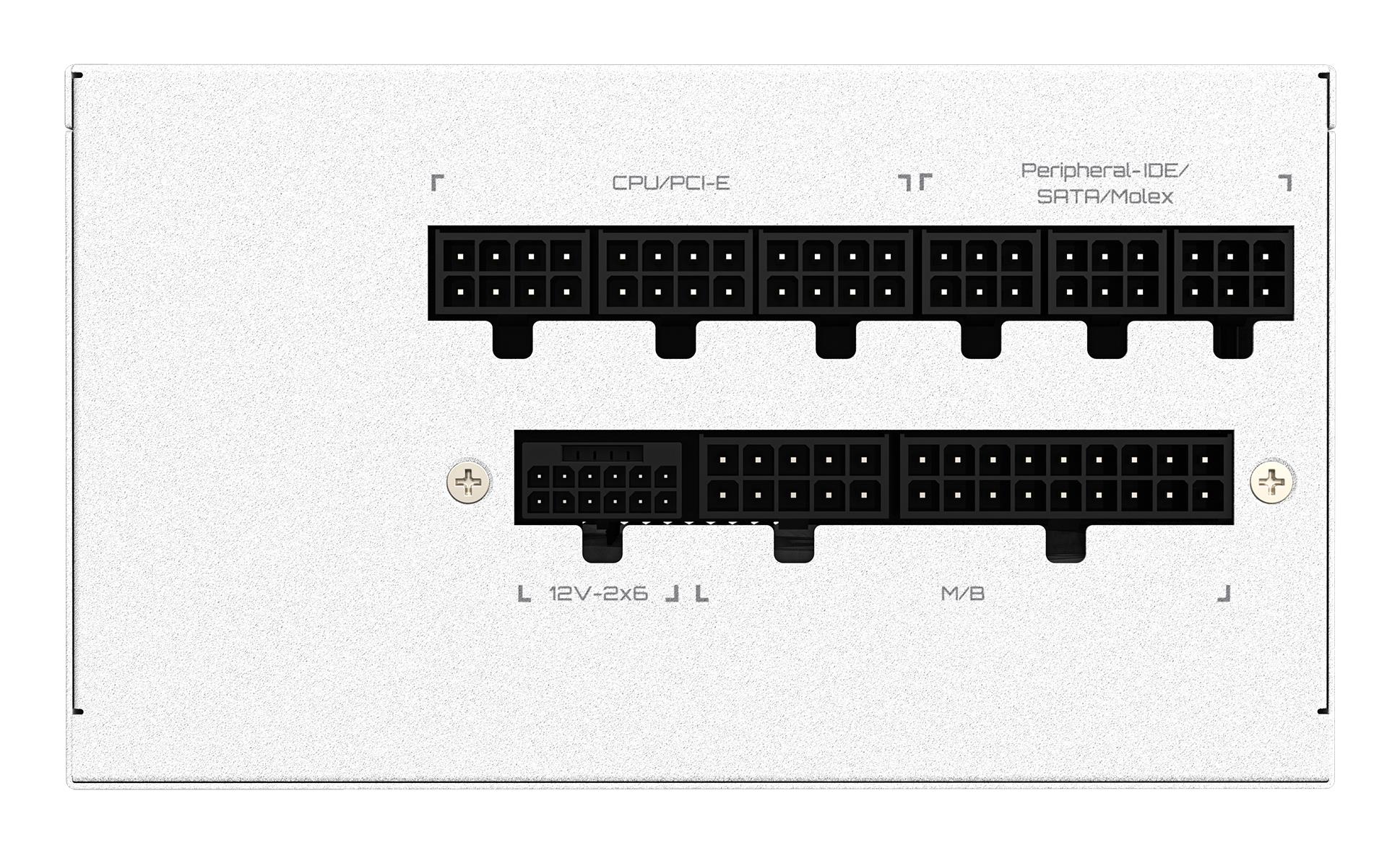

Cabling type: Fully-Modular
CPU power cable length: 650
CPU power connector (4+4 pin): Yes
Floppy drive power connector: 1
Motherboard power cable length: 610
Motherboard power connector: 20+4 pin ATX
Number of EPS connectors: 2
Number of SATA power connectors: 8
PCI Express connector: Yes
PCI Express power cable length: 600
PCI Express power connectors (12+4 pin): 1
PCI Express power connectors (12+4 pin) cable length: 700
PCI Express power connectors (6+2 pin): 4
Peripheral (Molex) power connectors (4-pin): 3
80 PLUS certification: 80 PLUS Gold
ATX version: 3.1
Bearing technology: HYB
Mean time between failures (MTBF): 100000
Power supply unit (PSU) form factor: ATX
Purpose: PC
Cooling type: Active
Fan diameter: 120
Number of fans: 1
On/off switch: Yes
Product colour: White
Depth: 140
Height: 86
Weight: 2480
Width: 150
Package depth: 269
Package height: 211
Package type: Box
Package weight: 2640
Package width: 618
Warranty period: 10
Model name: UD1000GM PG5 ICE
Units per Pallet: 0
Units per Shipping Box: 5
Unit Calculated Volume: 0.007812
Unit Calculated Weight: 2.72
