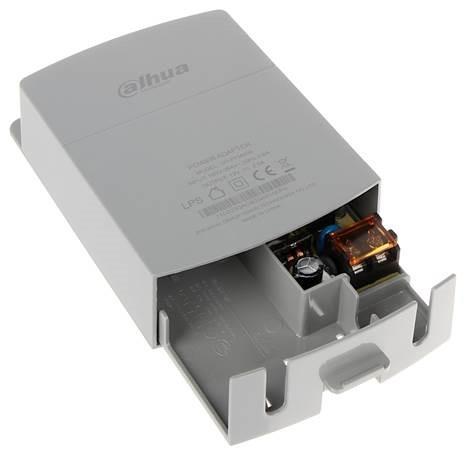

POWER ADAPTER 12V 2A/PFM300 DAHUA

Description:

>Easy installation and wall mount, structural water-proof;
>Support -30 ℃ ~+70 ℃ wide-range temperature operation, and the full load efficiency of the power supply can be up to 100% at these temperatures;
>With junction function for camera wiring or can place video balun with HDCVI/AHD/TVI/CVBS cameras;
>Made of PC environmental protection material, which meets “V0” fire protection;
>Accurate over current, voltage load protection.

Rated input: AC180~264V, 50/60Hz, 0.6A
Efficiency: 82%
Output voltage: DC12V (±5%) / 2A (±2%)
Working temperature: -30℃~+70℃, <90% RH


Vendor Homepage: www.dahuasecurity.com/ceen/products/productDetail/20647
Category Code: CAC
CnCode: 85044083
Unit Box Height: 0.095
Unit Box Length: 0.145
Unit Box Width: 0.04
Colour: Grey
Dimensions: 88 x 37 x 138mm
Units per Shipping Box: 1
Unit Calculated Volume: 0.000551
Product Net Weight: 0.16
Unit Calculated Weight: 0.181
