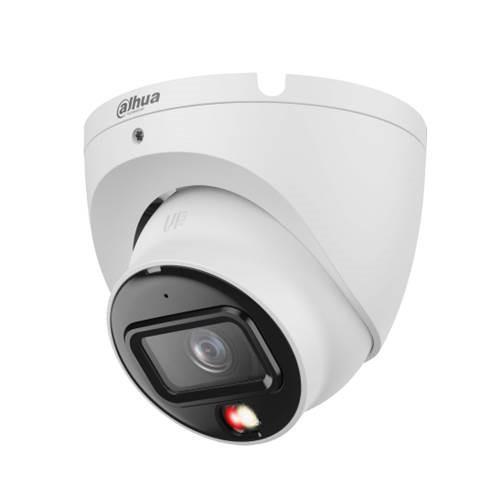

NET CAMERA 8MP EYEBALL/HDW1839T-A-IL-0280B-S6 DAHUA

Description:

> 8-MP 1/2.7" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 8 MP (3840 × 2160) @20 fps, and supports 2688 × 1520@25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in multi-core light, the max. IR distance is 30 m and the max. warm light distance is 30 m.
> Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Built in Mic.
> 12 VDC/PoE power supply, easy for installation.
> IP67 protection.
> Supports human detection.
> Focal Length 2.8mm. Field of View 110°


Vendor Homepage: material.dahuasecurity.com/uploads/cpq/prm-os-srv-res/smart/datasheetzipfiles/IPC-HDW1839T-A-IL_S6_datasheet_20240415.pdf
Category Code: FNC
CnCode: 85258900
Unit Box Height: 0.105
Unit Box Length: 0.11
Unit Box Width: 0.11
RJ45: 1
Camera design: Eyeball
Network Camera Type: HDTV/Megapixel/Outdoor
Resolution: 8
Focal Length: 2.8mm
Sensor size: 1/2.7″
Microphone: Built-in
Lens Mount: M12
Min. Illumination: 0.0008
Effective pixels: 3840 (H) × 2160 (V)
Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s
Power options: 12V/PoE
Power supply requirements: 12 VDC/PoE (802.3af)
Power consumption: 5.8
Environment: Outdoor
Operating temperature range: –40 °C to +55 °C
Colour: White
Dimensions: 85.6 mm × Φ94.0 mm
Units per Pallet: 0
Units per Shipping Box: 1
Unit Calculated Volume: 0.00127
Product Net Weight: 0.35
Unit Calculated Weight: 0.458
