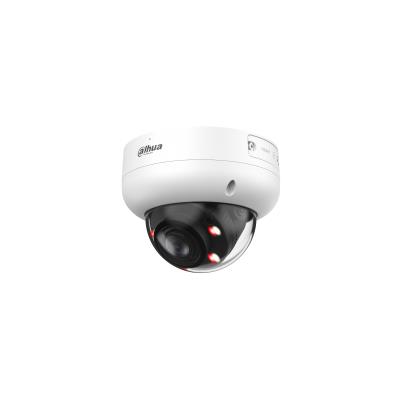

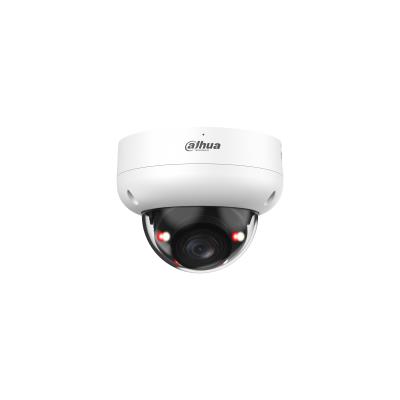

Type HDTV/Megapixel/Outdoor | Pixel Resolution 6 Mega Pixel | Focal Length 2.7 mm-13.5 mm | IR Illumination | Sensor size 1/2.7″ CMOS | Microphone Built-in | Min. Illumination 0.0005 Lux | Effective pixels 3288 (H) × 1850 (V) | Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s | Supports card capacities up to 512GB | Power supply requirements 12 VDC/PoE (802.3af) | Operating temperature range –30 °C to +60 °C | Colour White | Dimensions 94.0 mm × Φ122.0 mm
> 6-MP 1/2.7" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 6 MP (3288 × 1850)@25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in multi-core light, the max. IR distance is 50 m and the max. warm light distance is 50 m.
> ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human).
> Abnormality detection: Motion detection,video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card; built-in Mic.
> 12 VDC/PoE power supply.
> IP67, IK10 protection.
> SMD 4.0.
> Supports AI SSA.
> SMD area can be set in warm light areas that support triggering alarms.
> Focal Length 2.7 mm-13.5 mm, Field of View 114°–32°
Vendor Homepage: www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/3-Series/Smart-Dual-Light/IPC-HDBW3649R-ZAS-IL Category Code: FNC CnCode: 85258900 Unit Box Height: 0.14 Unit Box Length: 0.14 Unit Box Width: 0.15 Model: IPC-HDBW3649R-ZAS-IL-27135 Camera design: Dome Network Camera Type: HDTV/Megapixel/Outdoor Resolution: 6 Focal Length: 2.7 mm-13.5 mm IR Illumination: Yes Sensor size: 1/2.7″ CMOS Microphone: Built-in Min. Illumination: 0.0005 Effective pixels: 3288 (H) × 1850 (V) Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s Supports card capacities up to: 512GB Power supply requirements: 12 VDC/PoE (802.3af) Power consumption: 9.8 Operating temperature range: –30 °C to +60 °C Colour: White Dimensions: 94.0 mm × Φ122.0 mm Units per Pallet: 0 Units per Shipping Box: 1 Unit Calculated Volume: 0.00294 Product Net Weight: 0.56 Unit Calculated Weight: 0.75
