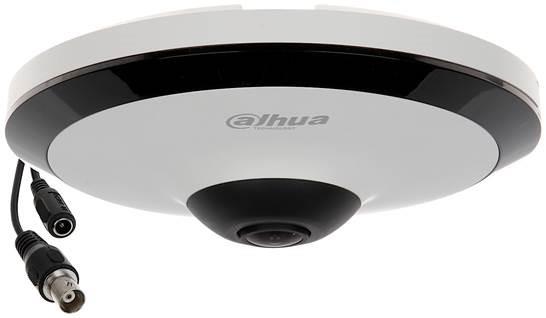

NET CAMERA 5MP FISHEYE IR DOME/IPC-EW5541-AS DAHUA

Description:

1/2.7” 5MP progressive scan CMOS,
2592×1944 @ 25FPS
Minimum illumination: 0.006 Lux@F2.0 (Color, 30IRE). 0.0006 Lux@F2.0 (B/W, 30IRE), 0 Lux (Illuminator on)
Illumination Distance: 10 m
True Day/Night ICR, BLC/HLC/True WDR 120 dB/3D DNR
1.4 mm fixed lens (180°)
Memory Slot: Micro SD, Max 256GB,
1/1 Alarm In/Out, 1/1 Audio In/Out (+Built in Mic)
H.265; H.264; H.264H; H.264B; MJPEG encoding, ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P
No protection, indoor use only, -10°C~+50°C, PoE / 12VDC power, 7.3W, metal + plastic case
IVS (Perimeter Protection): Tripwire; intrusion
Support people counting in area, and displaying and outputting yearly/monthly/daily reports (matching devices are needed); support people counting in 4 areas
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.
Free IP monitoring software available
Advanced Intelligent Functions: Tripwire, Intrusion, Heat map, People counting

Vendor Homepage: www.dahuasecurity.com/products/All-Products/Network-Cameras/WizMind-Series/Panoramic-Series/Fisheye/IPC-EW5541-AS
Category Code: FNC
CnCode: 85258900
Unit Box Height: 0.14
Unit Box Length: 0.16
Unit Box Width: 0.16
Alarm In: 1
Alarm Out: 1
Audio-In: 1
Audio-Out: 1
MicroSD Card Slot: 1
Camera design: Other
Resolution: 5
Focal Length: 1.4 mm
Sensor size: 1/2.7″
Microphone: Built-in
Lens Mount: M12
Min. Illumination: 0.006
Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s
Supports card capacities up to: 256GB
Power options: 12V/PoE
Power supply requirements: 12V DC/PoE
Power consumption: 7.3
Environment: Outdoor
Operating temperature range: –10°C to +50°C
Dimensions: 44.6 mm × Φ126.2 mm
Units per Shipping Box: 1
Unit Calculated Volume: 0.003584
Product Net Weight: 0.299
Unit Calculated Weight: 0.488
