NB ACC DOCKING STATION 16IN1/THUNDERBOLT CSV-1583 CLUB3D

Description:

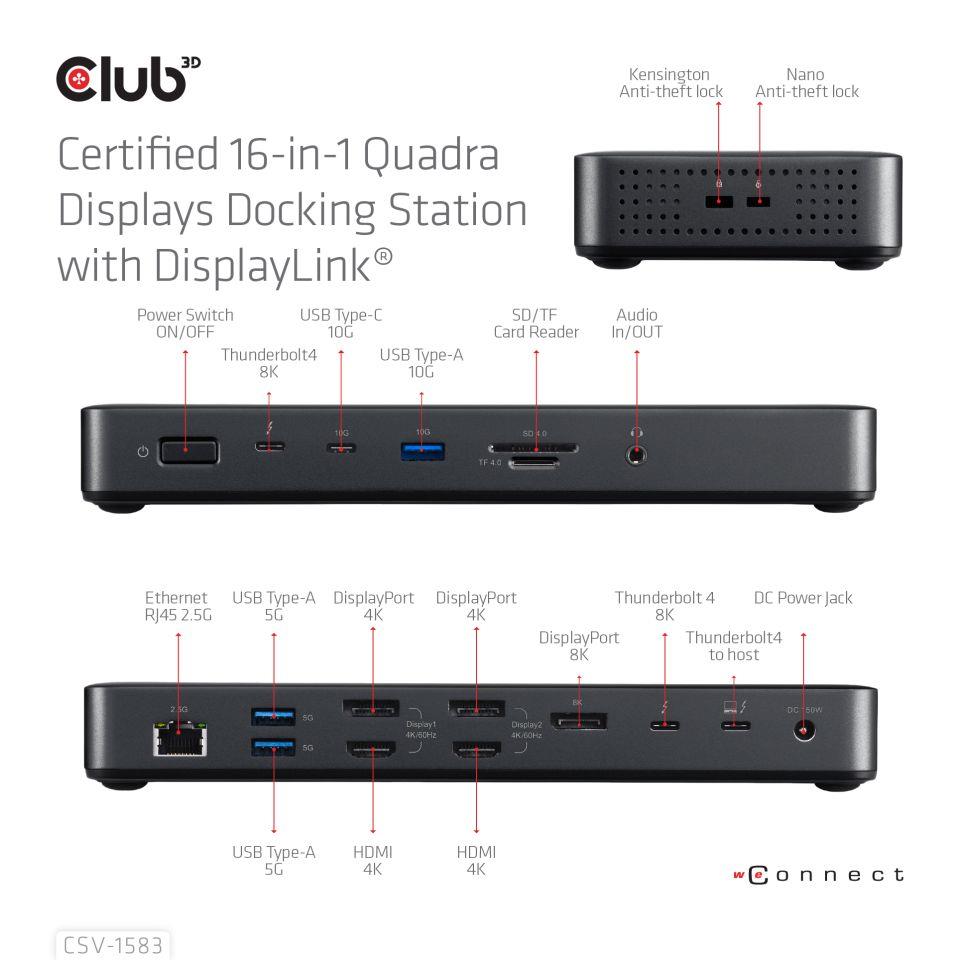

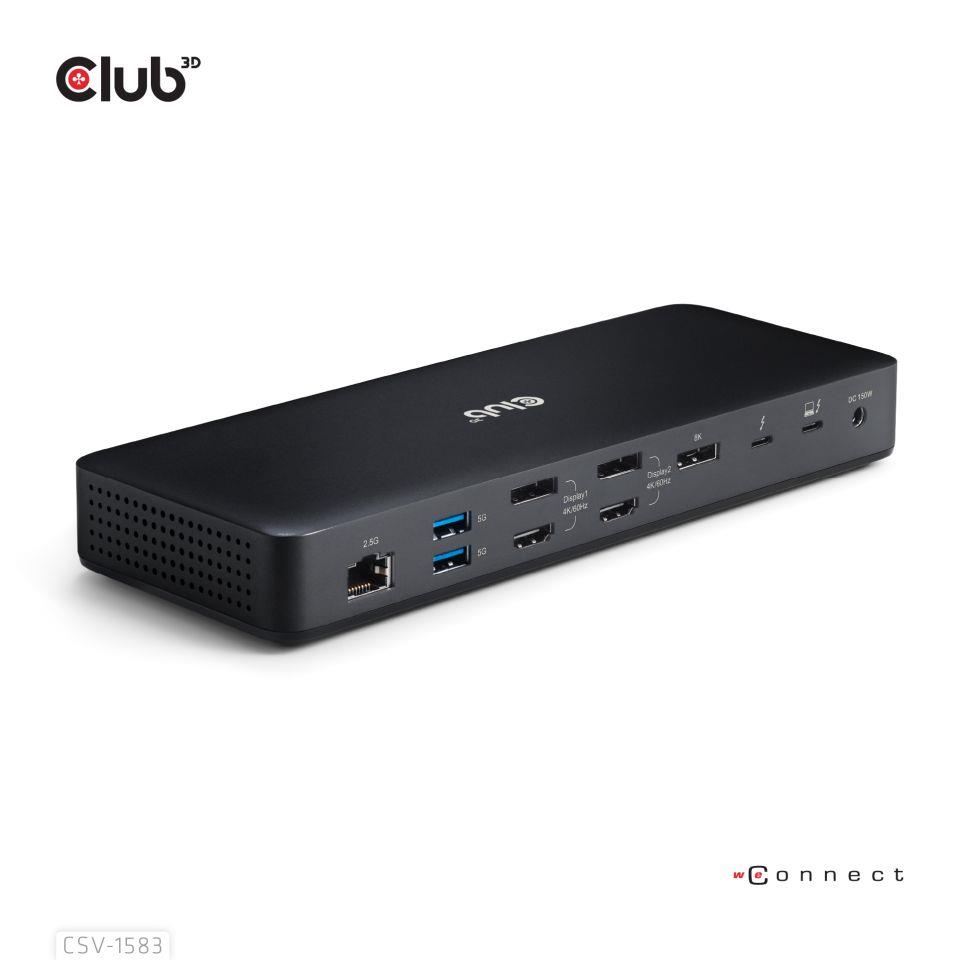

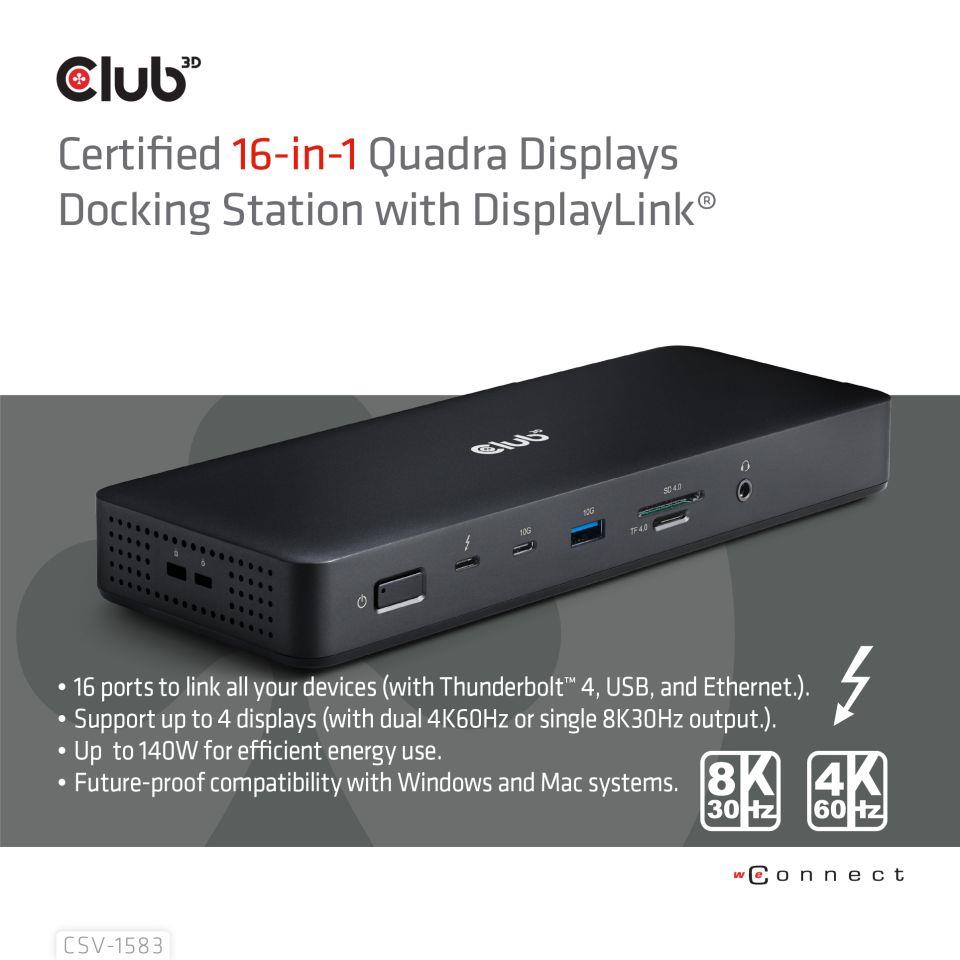

Thunderbolt 4 16-in-1 Quadra(4) Displays Docking Station

The Club 3D CSV-1583 is a Thunderbolt™ 4 Certified 16-in-1 Quadra Displays Docking Station with DisplayLink® which provides the most advanced, efficient, and versatile I/O solution available with up to 40Gb/s for data and video. Among all 7 video ports, allow to output max 3 videos when connected to M1, M2 and M3; 4 videos when connected to M1 Pro/Max, M2 Pro/Max, M3 Pro/Max and other Mac series NoteBooks and Windows NoteBooks. RJ45 supports max 2.5G bandwidth. USB ports support max 10G data transmission. Besides, it supports smart power function which enables to distribute power according to the power consumption of the connected device, making full use of external power supply. It is designed for TBT4™/USB4™ based PCs and compatible with /DP-Alt-mode PCs.

Vendor Homepage: https://www.club-3d.com/en/detail/2655/thunderbolt_4_16_in_1_quadra(4)_displays_docking_station/
Category Code: NBK
CnCode: 84733020
Unit Box Height: 0.125
Unit Box Length: 0.275
Unit Box Width: 0.085
DisplayPort: 3
HDMI: 2
Headphones jack: 1
RJ45: 1
SD Card Slot: 1
Thunderbolt: 2
USB 3.2: 3
USB-C: 1
Model: CSV-1583

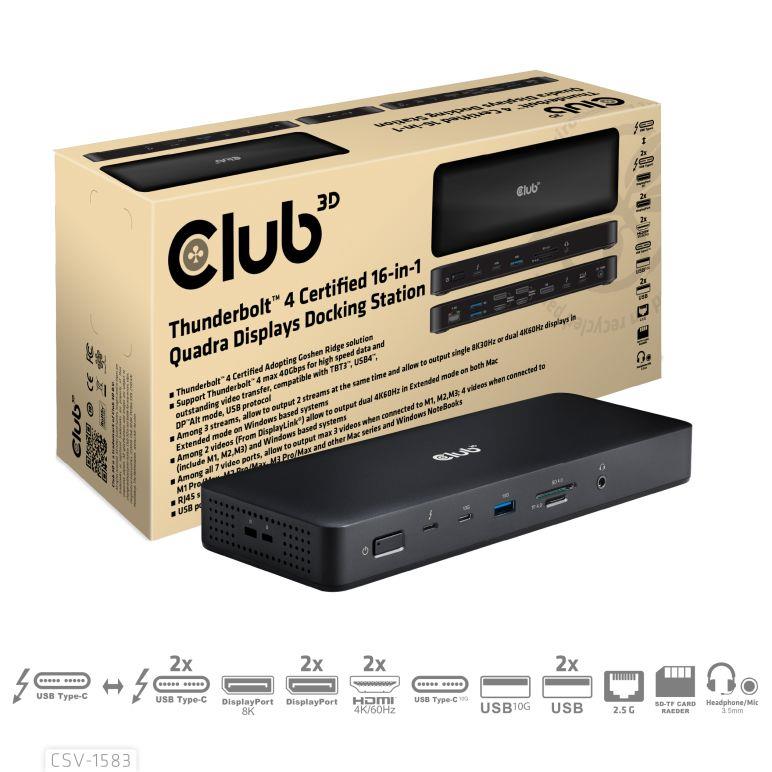

Included Accessories: • CSV- 1583 Thunderbolt™ 4 Certified 16-in-1 Quadra Displays Docking Station
• Power Adapter 150Watt
• TB4™ Cable 0.8m / 2.62 ft M/M(for connection to host)
• QR code for the QIG(Quick Installation Guide)
Colour: Black
Dimensions: 22.5 x 8.5 x 2.9 cm
Units per Pallet: 0
Units per Shipping Box: 1
Unit Calculated Volume: 0.002922
Product Net Weight: 0.594
Unit Calculated Weight: 1.28
