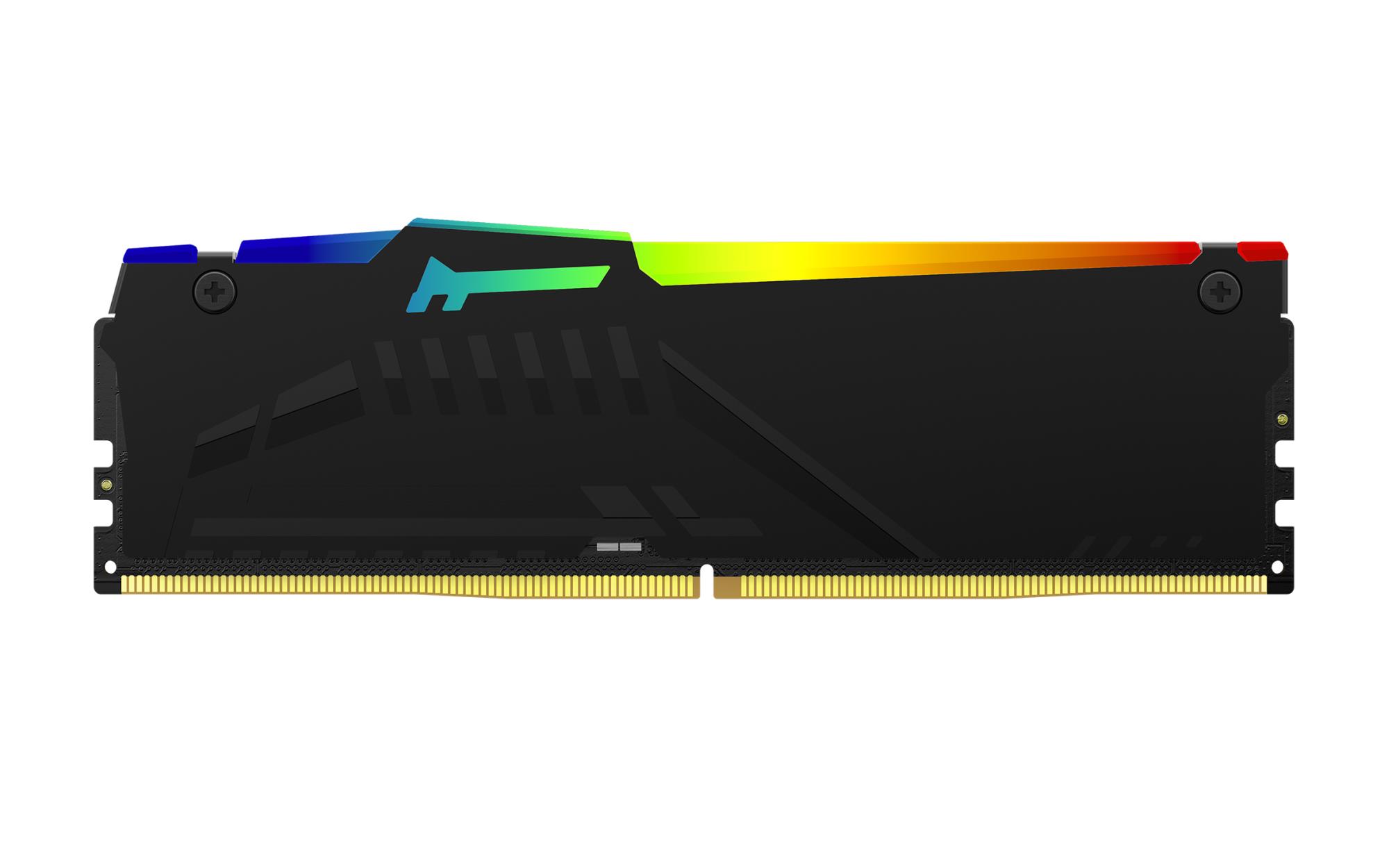

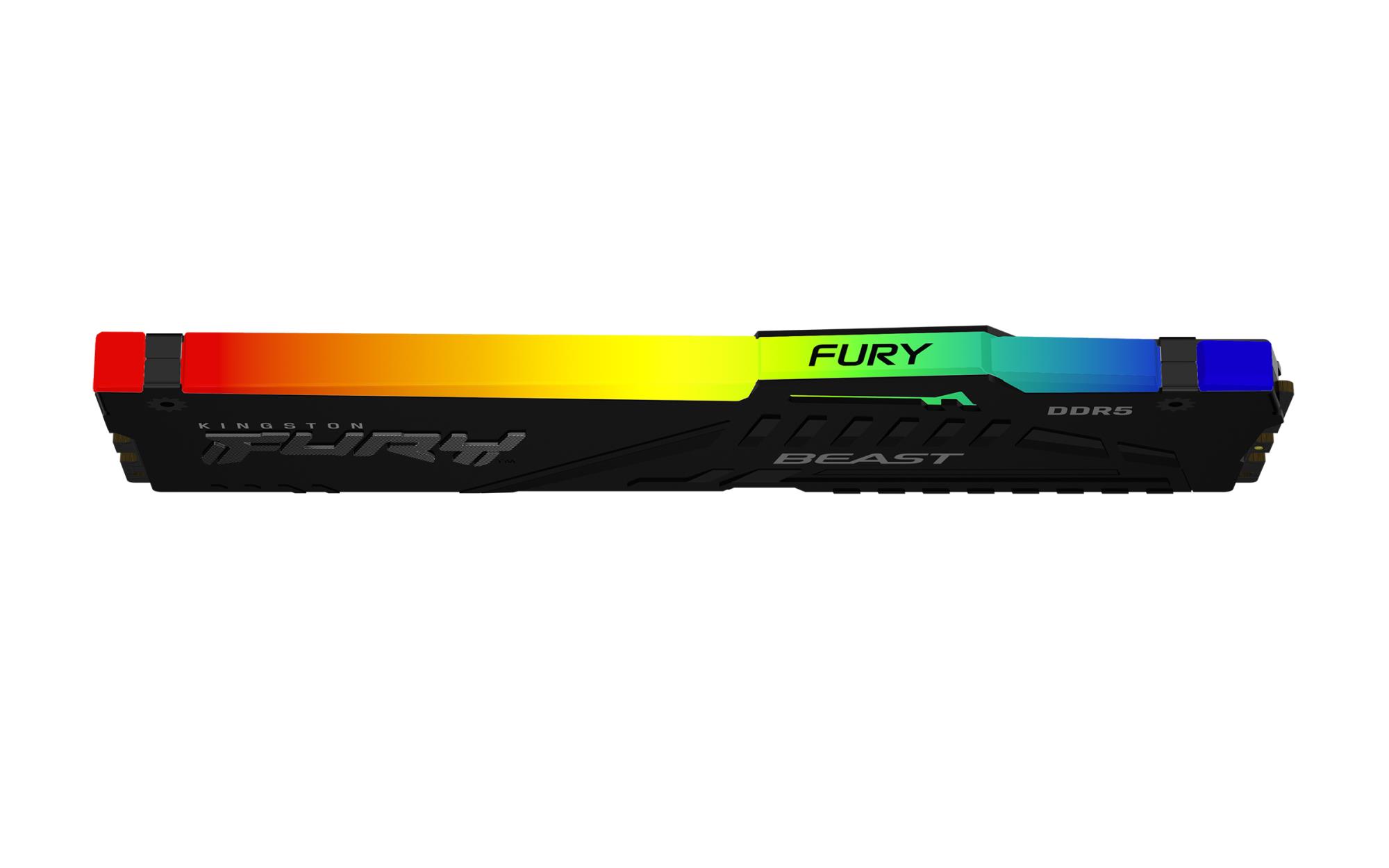

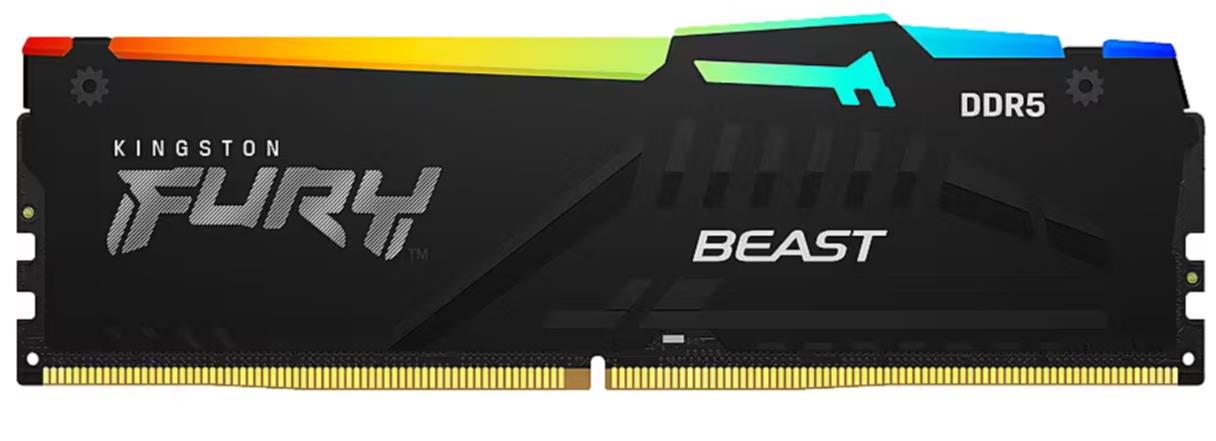

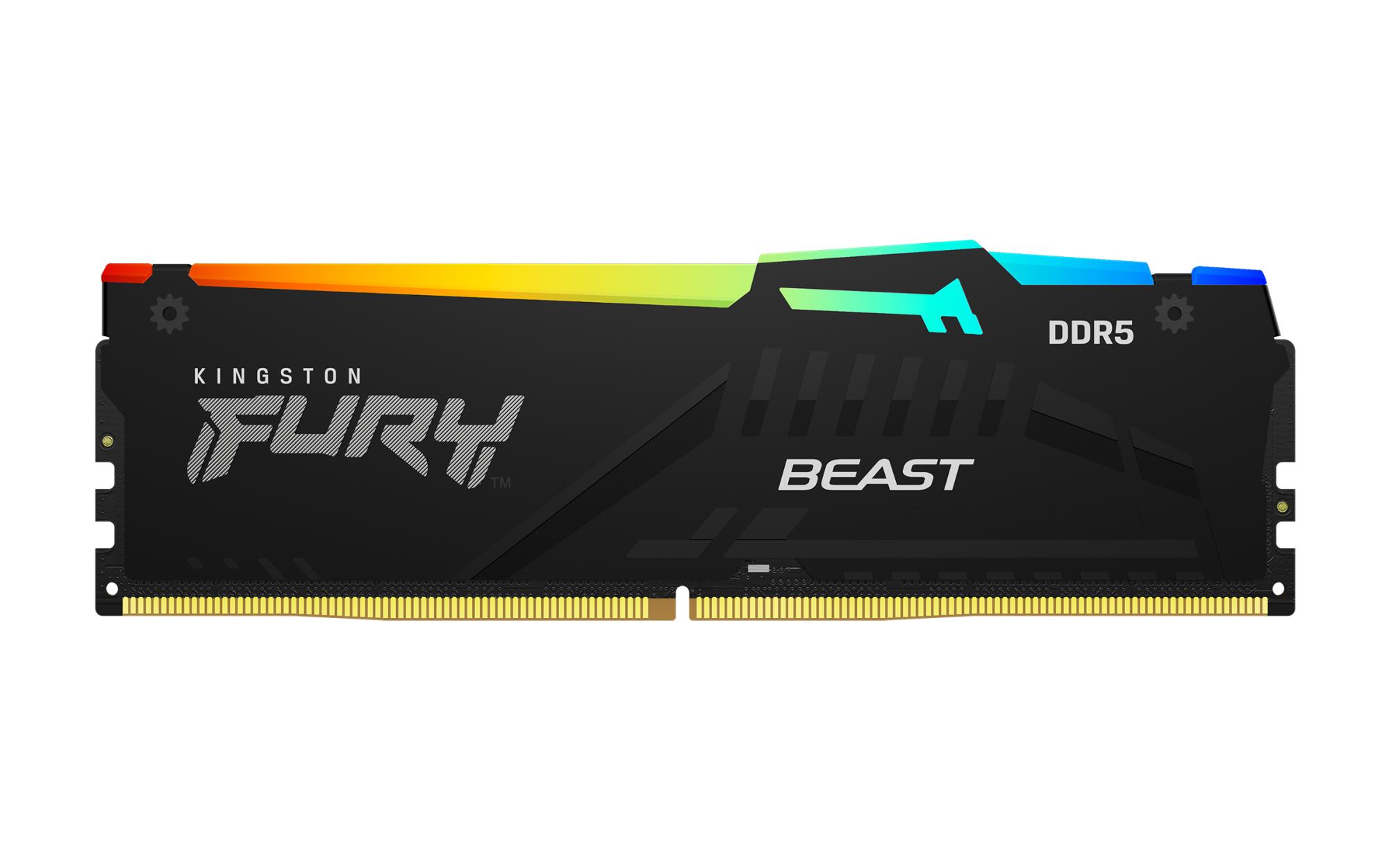

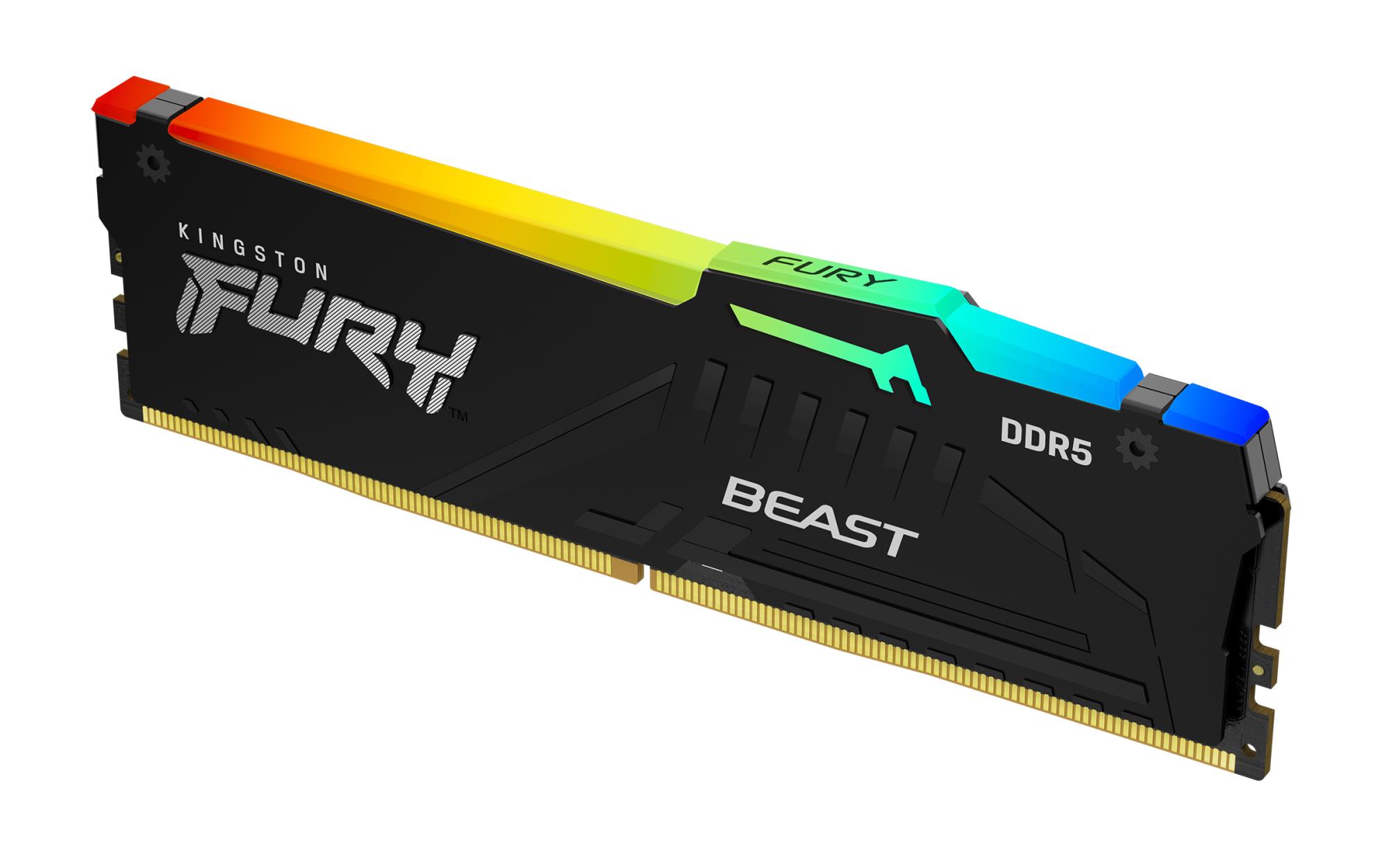

MEMORY DIMM 8GB DDR5-6000/KF560C36BBEA-8 KINGSTON

Description:

Kingston FURY KF560C36BBEA-8 is a 1G x 64-bit (8GB) DDR5-6000 CL36 SDRAM (Synchronous DRAM) 1Rx16, memory module, based on four 1G x 16-bit FBGA components per module. The module supports AMD EXPO v1.0 and Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Each module has been tested to run at DDR5-6000 at a low latency timing of 36-38-38 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers

Vendor Homepage: www.kingston.com/datasheets/KF560C36BBEA-8.pdf
Category Code: MEM
CnCode: 84733020
Unit Box Height: 0.015
Unit Box Length: 0.17
Unit Box Width: 0.055
Model: KF560C36BBEA-8
Performance: Gaming
Memory type: DDR5
Total capacity: 8GB
Memory module capacity: 8GB
Number of modules: 1
Frequency speed: 6000
Module form factor: 288-pin DIMM
Memory features: UDIMM
Heatsink: Yes
CL: 40
Nominal voltage: 1.35
Chip Organization: 1024Mx64
Specific features: RGB
Colour: Black
Units per Pallet: 0
Units per Shipping Box: 1
Unit Calculated Volume: 0.0001402
Product Net Weight: 0.03
Unit Calculated Weight: 0.06
