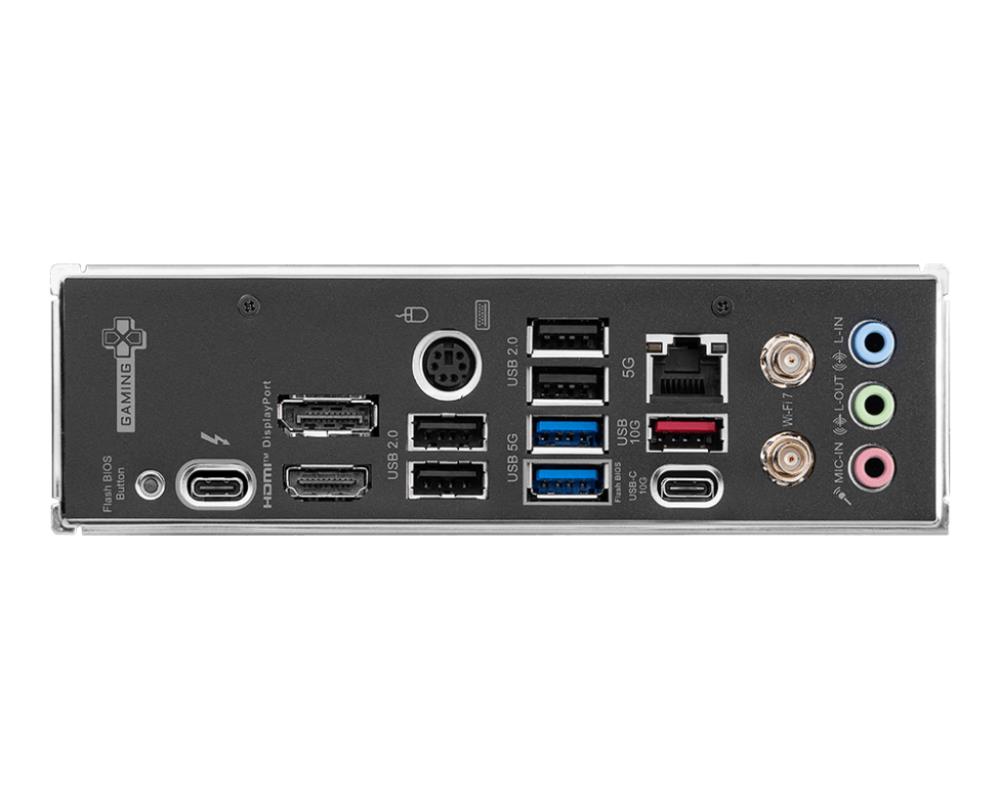

Mainboard MSI Intel Z890 LGA1851 ATX Memory DDR4 Memory slots 4 1xPCI-Express 4.0 1x 2xPCI-Express 4.0 4x 1xPCI-Express 5.0 16x 4xM.2 1xHDMI 1xDisplayPort 4xUSB 2.0 3xUSB 3.2 1xUSB-C 1xUSB-C w/Thunderbolt 1xPS/2 1xRJ45 3xAudio port Z890GAMINGPLUSWIFI
Liko 5
Intel Z890 | LGA1851 | ATX | DDR4 | 9200/7200/6400/4800 MHz | Memory slots 4 | Video Depending on CPU | LAN 5 Gigabit | Audio Realtek ALC897 | RAID SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10 | TPM Header
282,61 €
Liko 5
Description:

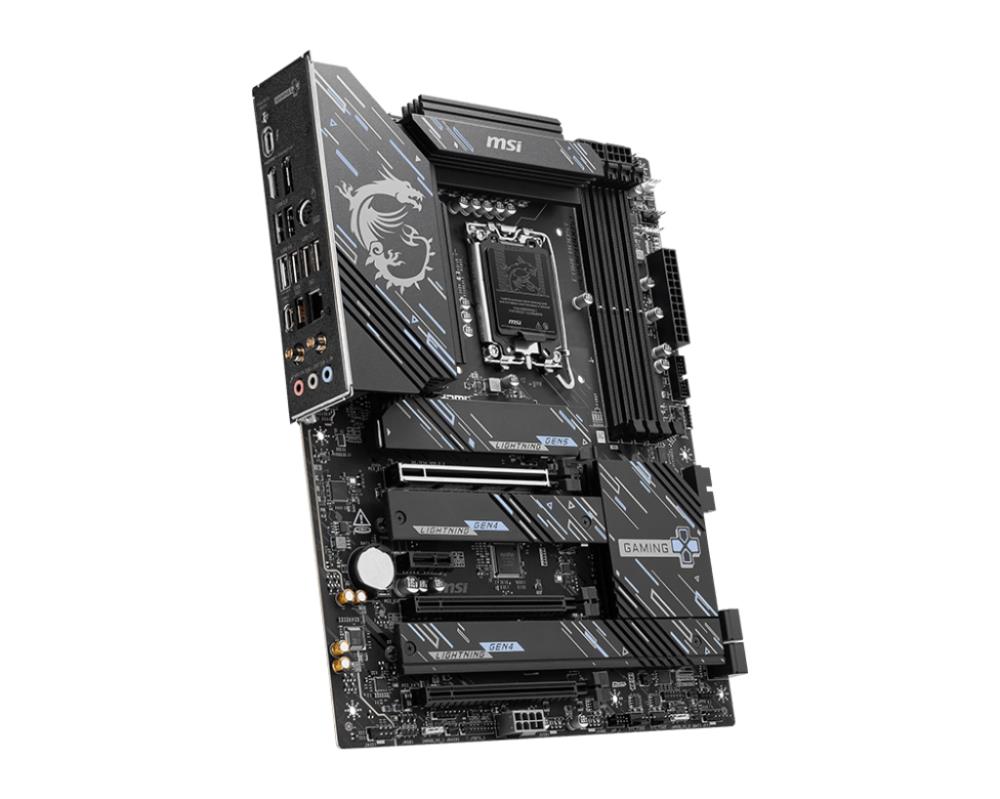

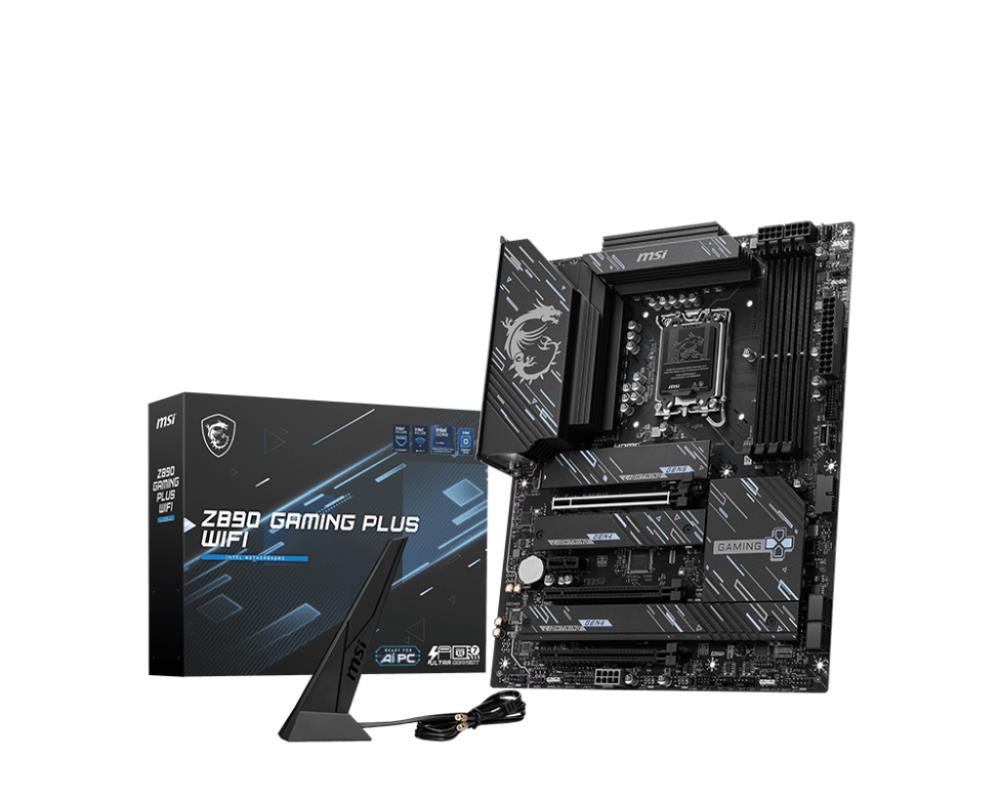

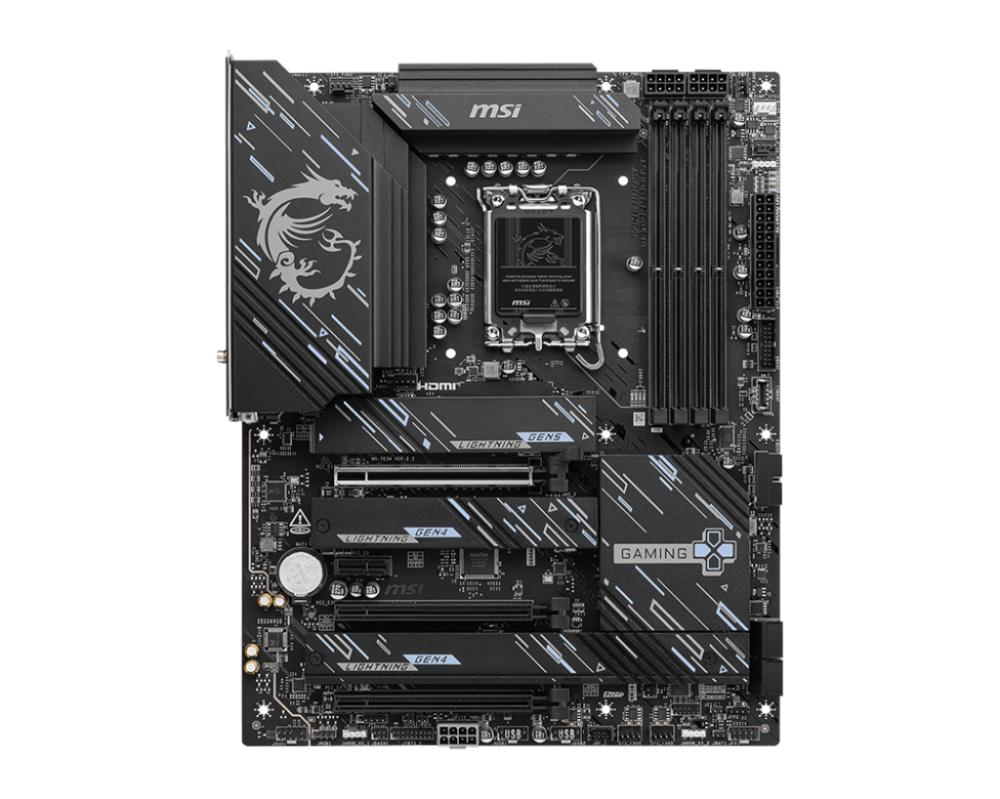

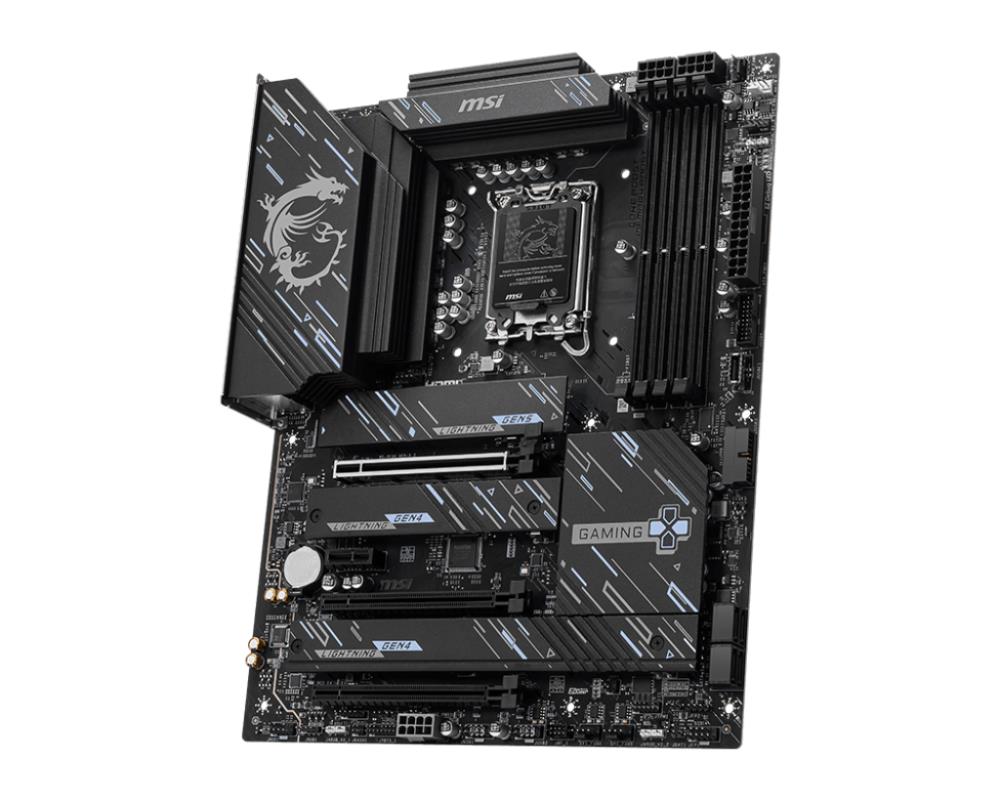

Z890 GAMING PLUS WIFI is designed with durable components to provide great gaming experience. Designed with Killer Wi-Fi 7 and 5G LAN, Thunderbolt 4, PCIe 5.0 solutions, Supplemental PCIe Power and exclusive EZ DIY features, it's ready for 24/7 non-stop gaming of Intel Core Ultra processors.
- Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
- Supports DDR5 Memory, Dual Channel DDR5 9200+ MT/s (OC)
- Ultra Performance: 14+1+1+1 Duet Rail Power System 55A DrMOS, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
- EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
- Ultra Connect: Thunderbolt™ 4 port, Intel® Killer™ 5G LAN & Intel® Killer™ Wi-Fi 7 Solution – the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
Vendor Homepage: www.msi.com/Motherboard/Z890-GAMING-PLUS-WIFI
Category Code: MBI
CnCode: 84733020
Unit Box Height: 0.072
Unit Box Length: 0.345
Unit Box Width: 0.275
M.2: 4
PCI-Express 4.0 1x: 1
PCI-Express 4.0 4x : 2
PCI-Express 5.0 16x: 1
Audio port: 3
DisplayPort: 1
HDMI: 1
PS/2: 1
RJ45: 1
USB 2.0: 4
USB 3.2: 3
USB-C: 1
USB-C w/Thunderbolt: 1
Bluetooth: Yes
SATA: Yes
Thunderbolt: Yes
USB 2.0: Yes
USB 3.2: Yes
USB-C: Yes
WiFi: Yes
Model: Z890 GAMING PLUS WIFI
Chipset: Intel Z890
Socket: LGA1851
Form Factor: ATX
Memory type: DDR4
Frequency speed: 4800/6400/7200/9200
Memory slots: 4
Integrated video: Depending on CPU
Integrated LAN: 5 Gigabit
Integrated audio: Realtek ALC897
RAID: SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10
TPM: Header
Units per Shipping Box: 5
Unit Calculated Volume: 0.008122
Product Net Weight: 2
Unit Calculated Weight: 2.14
