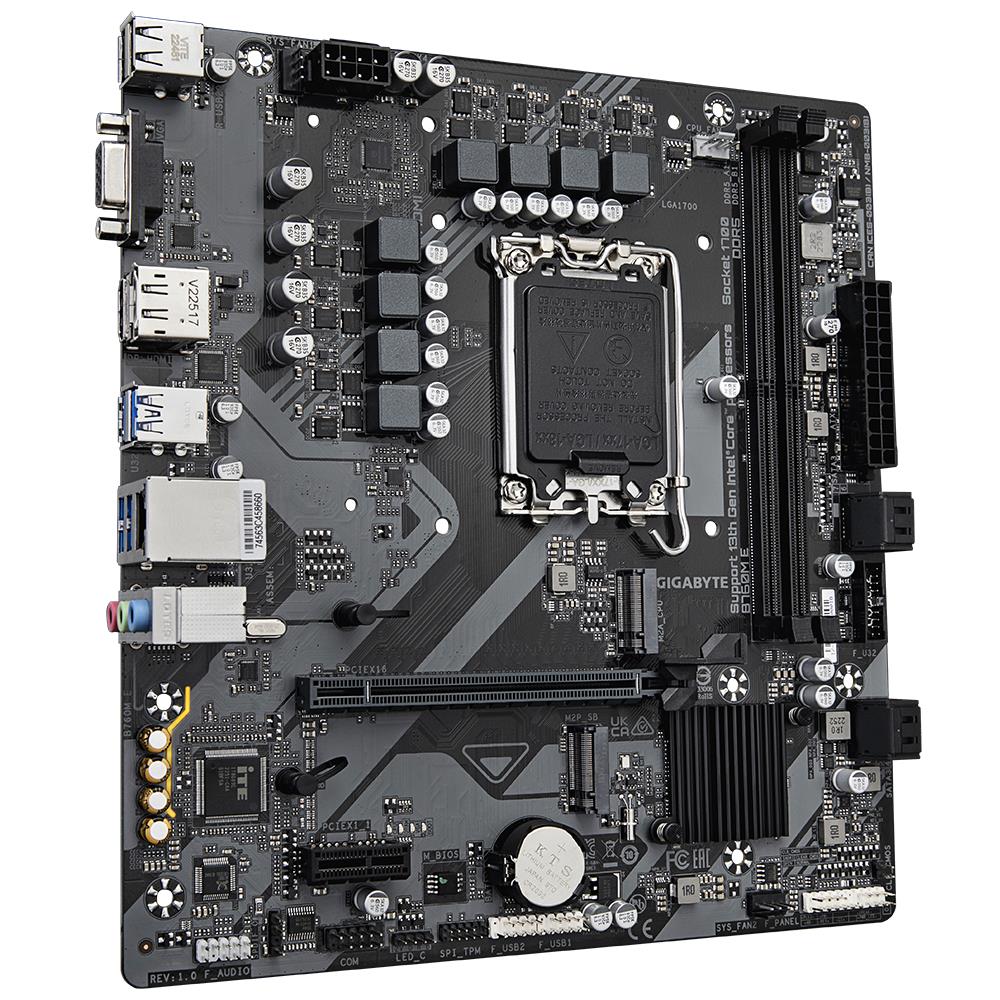

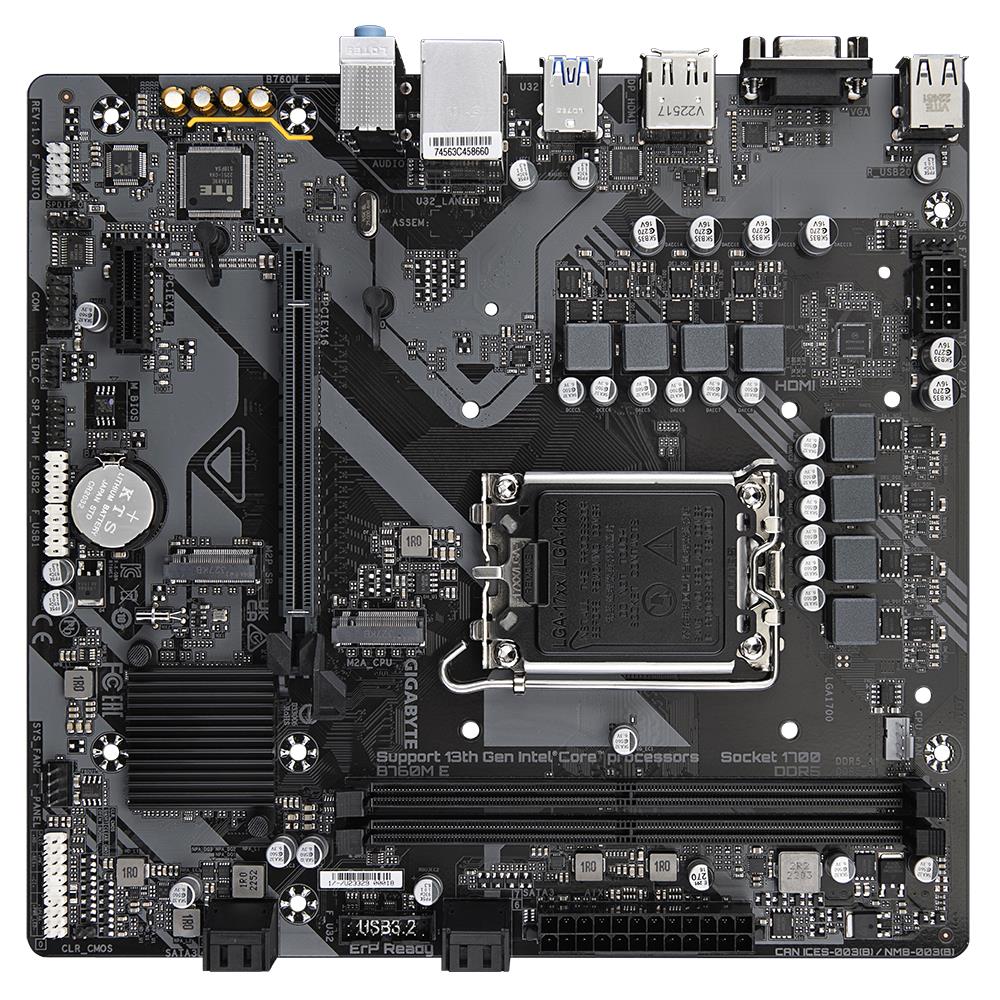

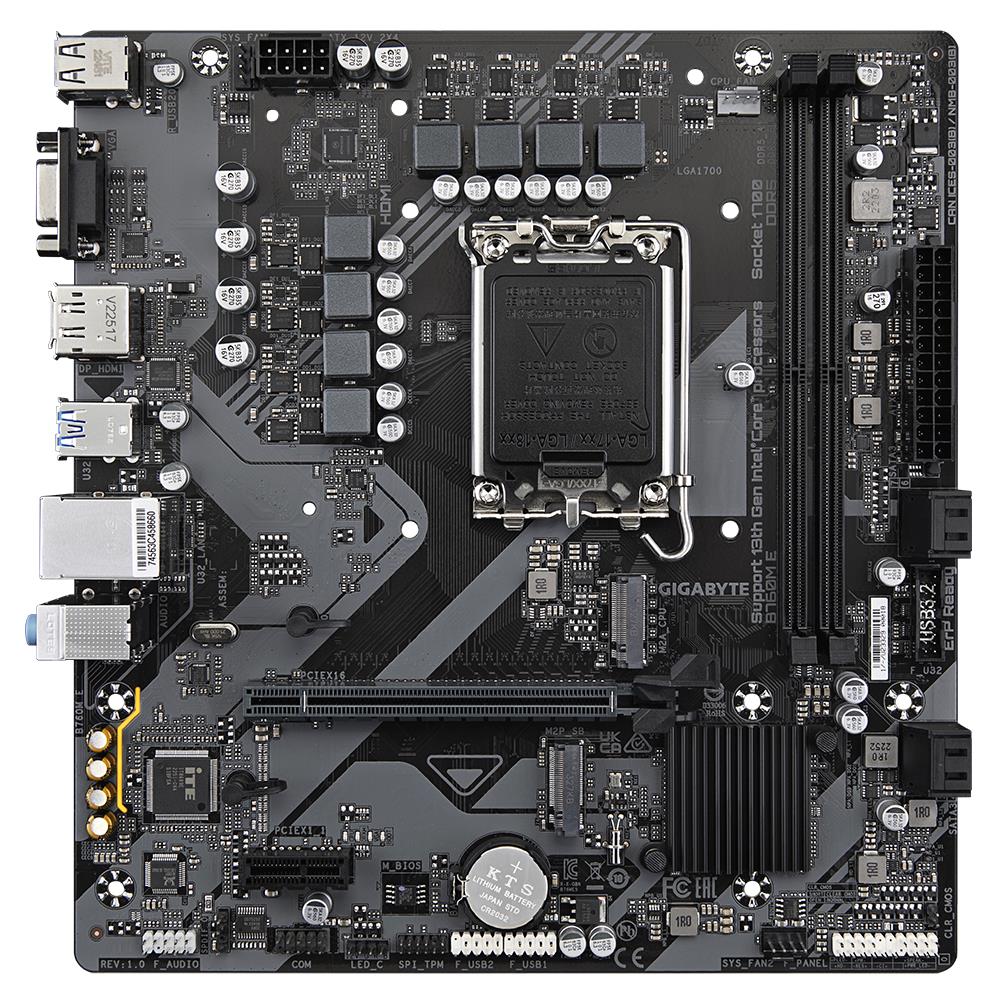

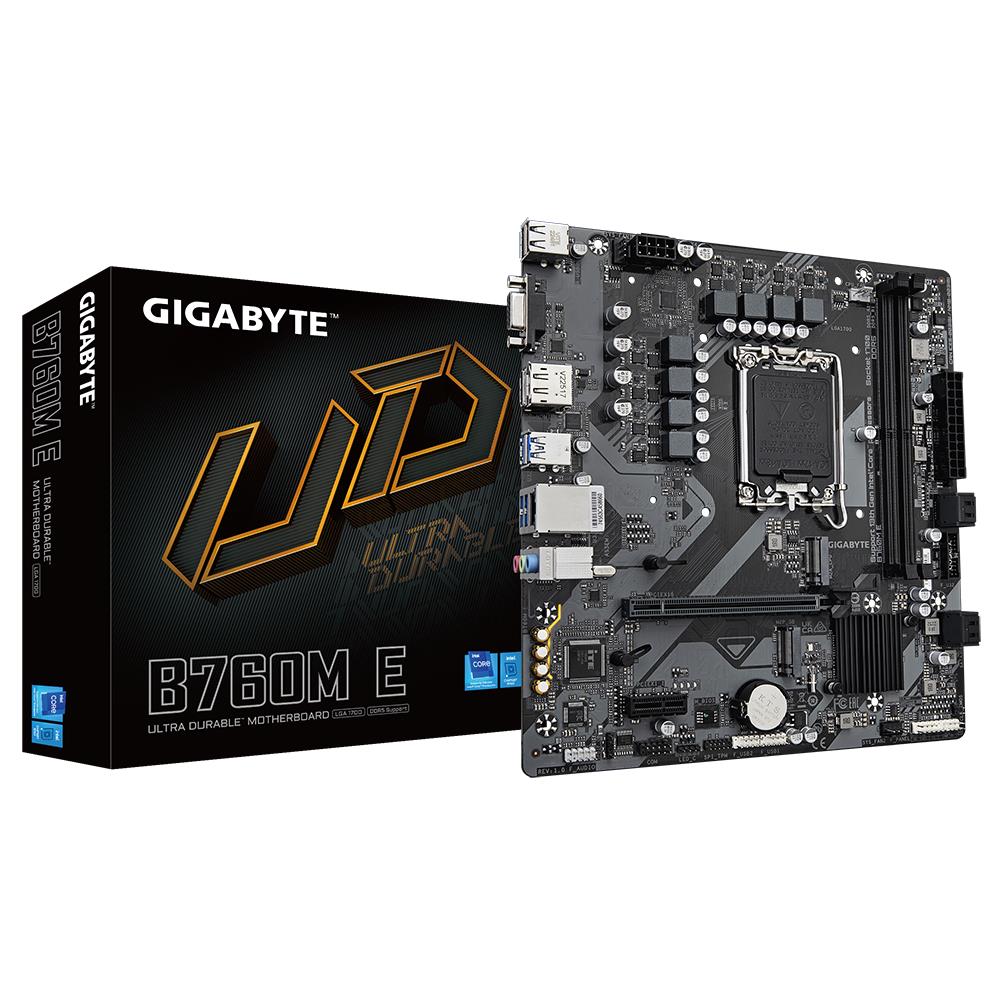

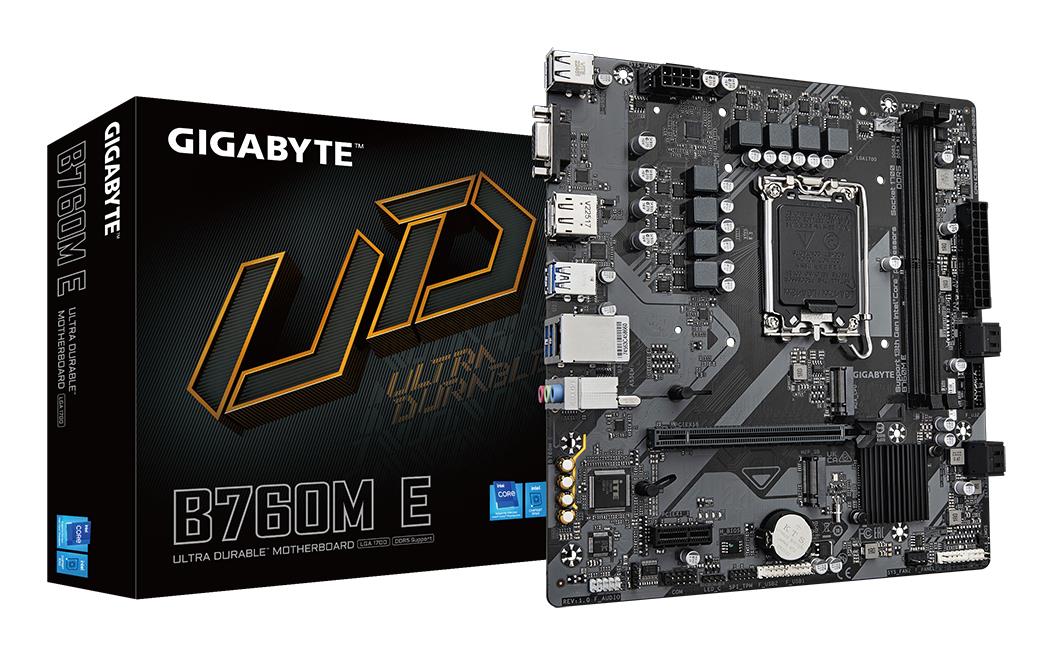

Mainboard GIGABYTE Intel B760 Express LGA1700 Micro-ATX Memory DDR5 Memory slots 2 B760ME1.0

Description:

B760M E (rev. 1.0)

• Supports Intel® Core™ 14th/ 13th /12th processors
• Unparalleled Performance：Hybrid 6+1+1 Phases Digital VRM Solution
• Dual Channel DDR5：2*DIMMs XMP Memory Module Support
• Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
• EZ-Latch：PCIe 4.0×16 Slot with Quick Release Design
• Fast Networks：GbE LAN
• Extended Connectivity：Display Port, HDMI, D-Sub
• Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP

Vendor Homepage: www.gigabyte.com/Motherboard/B760M-E-rev-10
Category Code: MBI
CnCode: 84733020
Unit Box Height: 0.055
Unit Box Length: 0.27
Unit Box Width: 0.265
M.2: 2
PCI-Express 3.0 1x: 1
PCI-Express 4.0 16x: 1

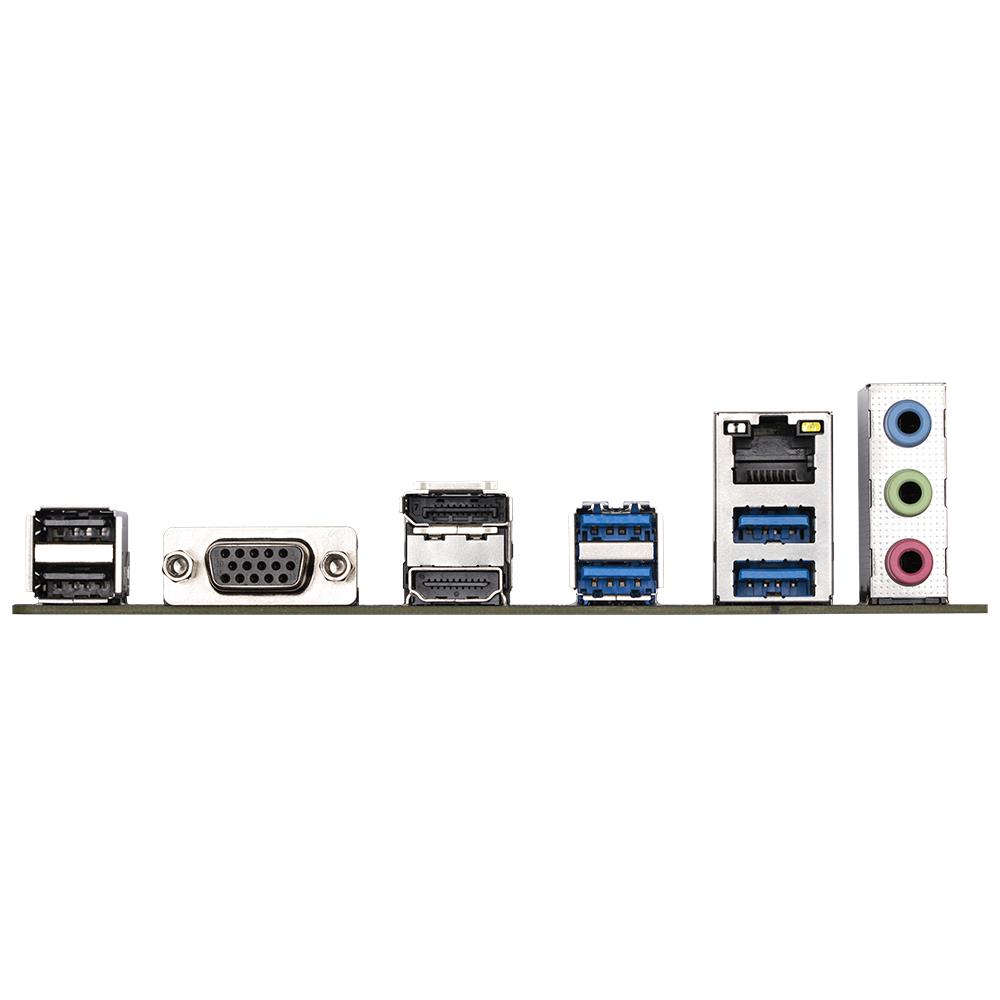

15pin D-sub: 1
Audio port: 3
DisplayPort: 1
HDMI: 1
RJ45: 1
USB 2.0: 2
USB 3.2: 4
SATA: Yes
Model: B760M E 1.0
Chipset: Intel B760 Express
Socket: LGA1700
Form Factor: Micro-ATX
Memory type: DDR5
Frequency speed: 4400/4800/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200
Memory slots: 2
Integrated video: Depending on CPU
Integrated LAN: Gigabit
Integrated audio: Yes
RAID: SATA 0, 1, 5, 10
TPM: Header
Units per Pallet: 0
Units per Shipping Box: 10
Unit Calculated Volume: 0.004628
Product Net Weight: 0.7
Unit Calculated Weight: 0.85
