Mainboard GIGABYTE AMD X870E SAM5 ATX Memory DDR5 Memory slots 4 1xPCI-Express 3.0 4x 1xPCI-Express 4.0 4x 1xPCI-Express 5.0 16x 4xM.2 1xHDMI 2xUSB 2.0 8xUSB 3.2 2xUSB-C 1xOptical S/PDIF 1xRJ45 2xAudio port X870EAORUSMASTER

Description:

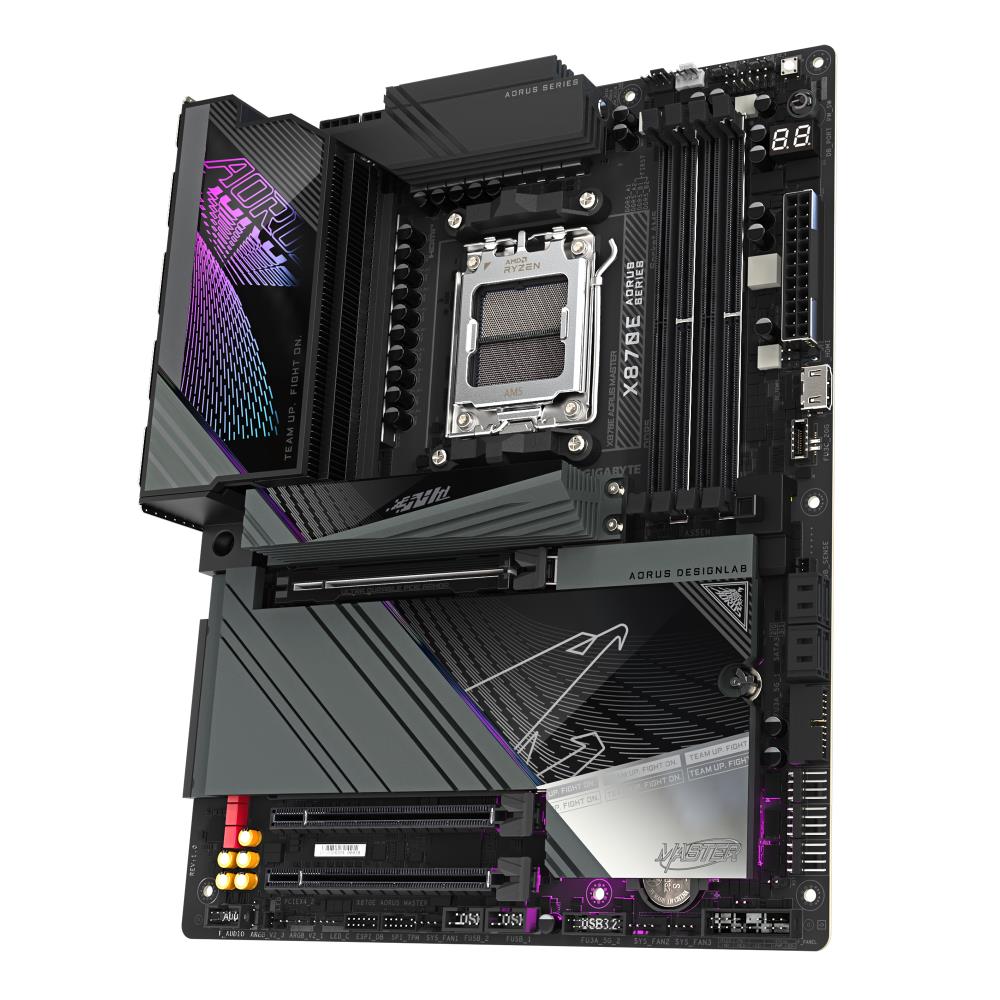

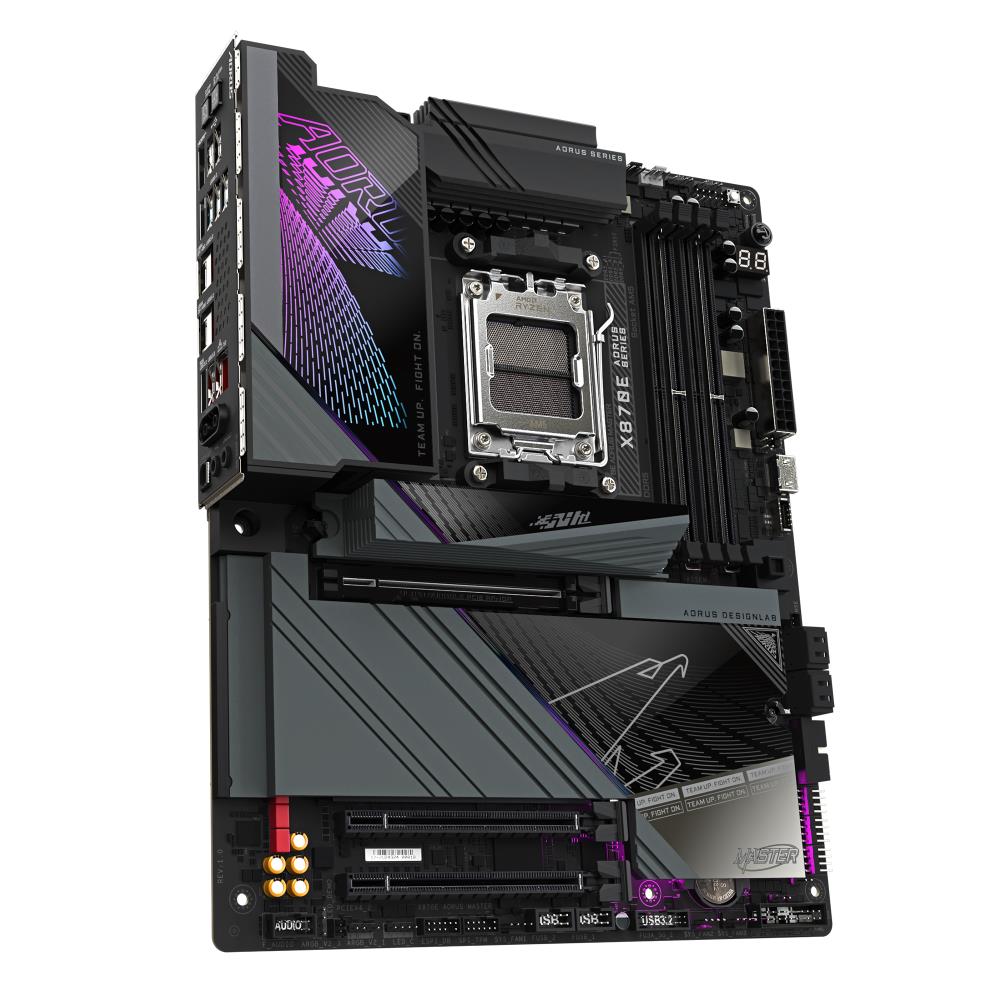

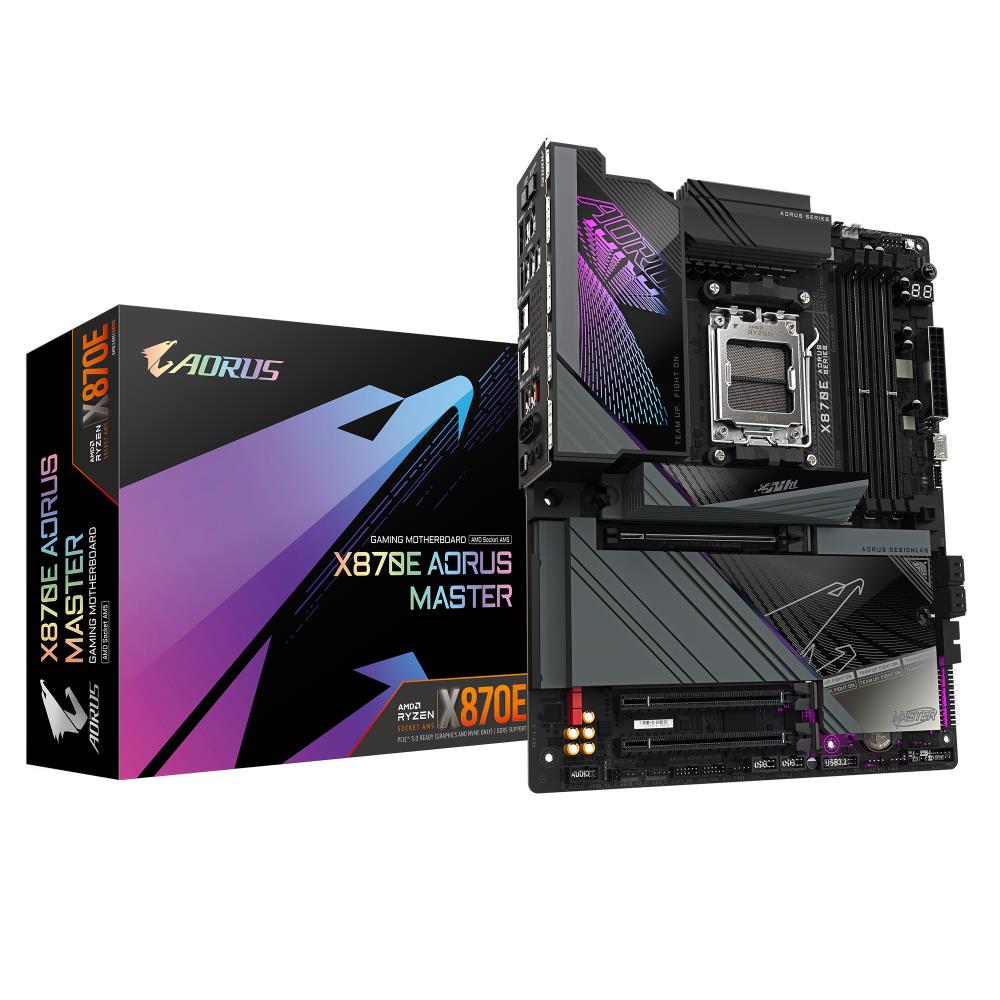

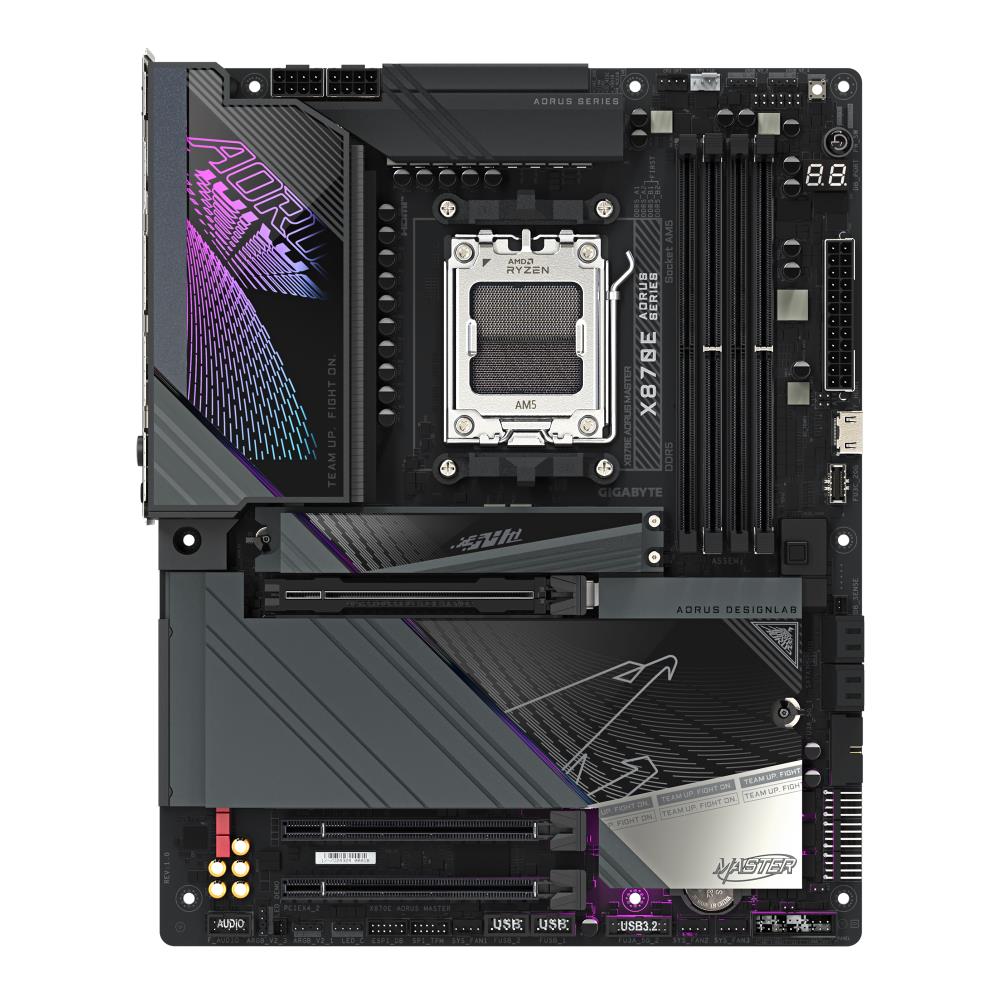

GIGABYTE X870E AORUS MASTER

DDR5 OC
up to 8600MT/s

AMD Socket AM5
Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors

Digital twin
16+2+2 phases VRM solution

Dual Channel DDR5
4*DIMMs with AMD EXPO™Memory Module Support

DDR Wind Blade
Enhanced Active Cooling for Memory Modules

M.2 EZ-Match
Magnetic alignment for easy installation of large heatsinks

WIFI EZ-Plug
Quick and easy design for Wi-Fi antenna installation

EZ-Latch Plus
PCIe and M.2 slots with Quick Release & Screwless Design

EZ-Latch Click
M.2 heatsinks with screwless design

Sensor Panel Link
Onboard video port for hassle-free in-chassis panel setup

Friendly UI
Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.

New Power Monitor in HWinfo
for real-time monitoring on CPU power phases

Ultra-Fast Storage
4*M.2 slots, including 3* PCIe 5.0 x4

Efficient Thermal
VRM Thermal Armor Advanced with I/O ZONE AORUS LIGHTING & M.2 Thermal Guard XL

Fast Networking
5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna

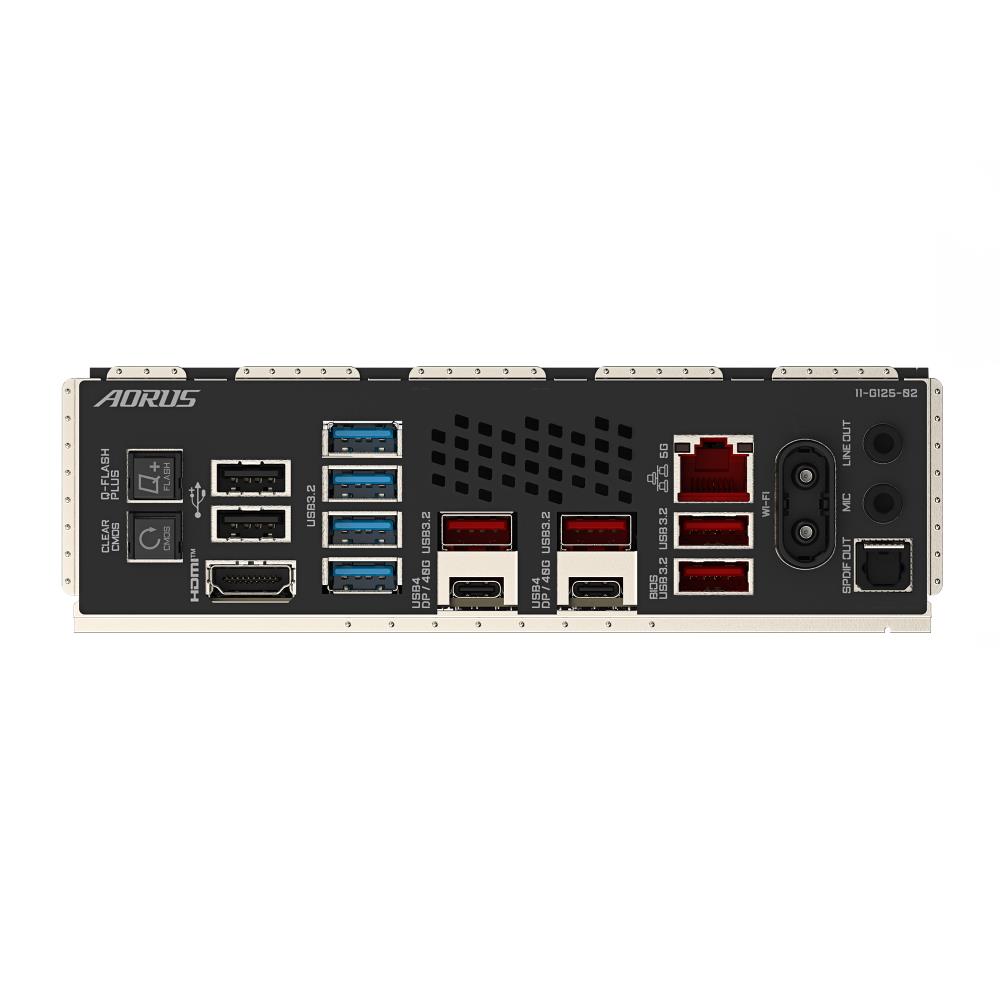

Extended Connectivity
Dual USB4 Type-C with DP-Alt, HDMI

Reliable Audio
Realtek ALC1220 HD Audio & WIMA Audiophile Grade Capacitors

Ultra Durable PCIe Armor
The metal back plate of PCIe x16 slot for enhanced durability.

PCIe UD Slot X
PCIe 5.0 x16 slot with 10X strength for graphics card

Vendor Homepage: www.gigabyte.com/Motherboard/X870E-AORUS-MASTER#kf
Category Code: MBA
CnCode: 84733020
Unit Box Height: 0.08
Unit Box Length: 0.35
Unit Box Width: 0.295
M.2: 4
PCI-Express 3.0 4x: 1
PCI-Express 4.0 4x : 1
PCI-Express 5.0 16x: 1
Audio port: 2
HDMI: 1
Optical S/PDIF: 1
RJ45: 1
USB 2.0: 2
USB 3.2: 8
USB-C: 2
Bluetooth: Yes
SATA: Yes
USB 2.0: Yes
USB 3.2: Yes
USB-C: Yes
WiFi: Yes
Model: X870E AORUS MASTER
Chipset: AMD X870E
Socket: SAM5
Form Factor: ATX
Memory type: DDR5
Frequency speed: 4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200/7600/7800/8000/8200/8400/8600
Memory slots: 4
Integrated video: Depending on CPU
Integrated audio: Realtek ALC1220
Integrated LAN: 5 Gigabit
RAID: SATA 0, 1, 10; NVMe 0, 1, 5, 10
TPM: Header
Units per Shipping Box: 4
Unit Calculated Volume: 0.01203
Product Net Weight: 2.3
Unit Calculated Weight: 3
