Mainboard GIGABYTE AMD B850 SAM5 Micro-ATX Memory DDR5 Memory slots 4 1xPCI-Express 3.0 4x 1xPCI-Express 4.0 4x 1xPCI-Express 4.0 8x 1xPCI-Express 5.0 16x 2xM.2 1xHDMI 2xDisplayPort 4xUSB 2.0 3xUSB 3.2 1xUSB-C 1xPS/2 1xRJ45 3xAudio port B850MEAGLEWF6EICE

Description:

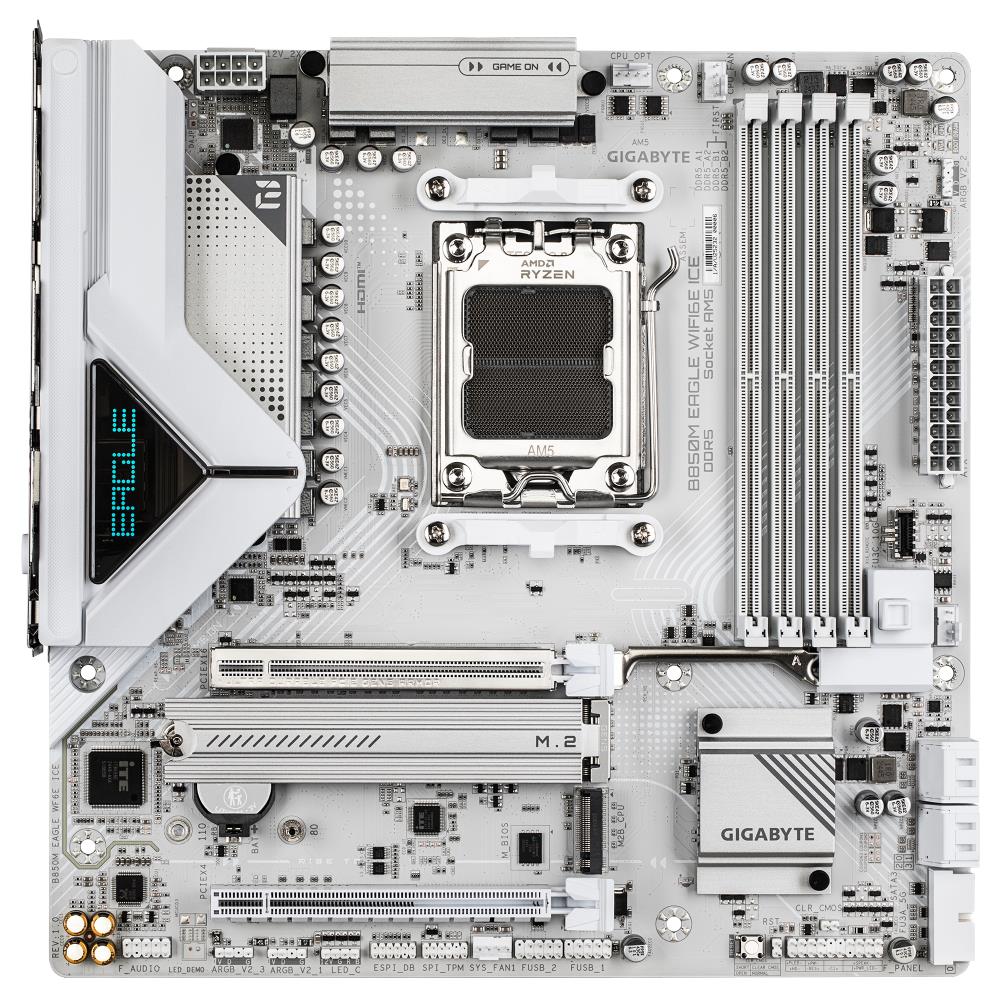

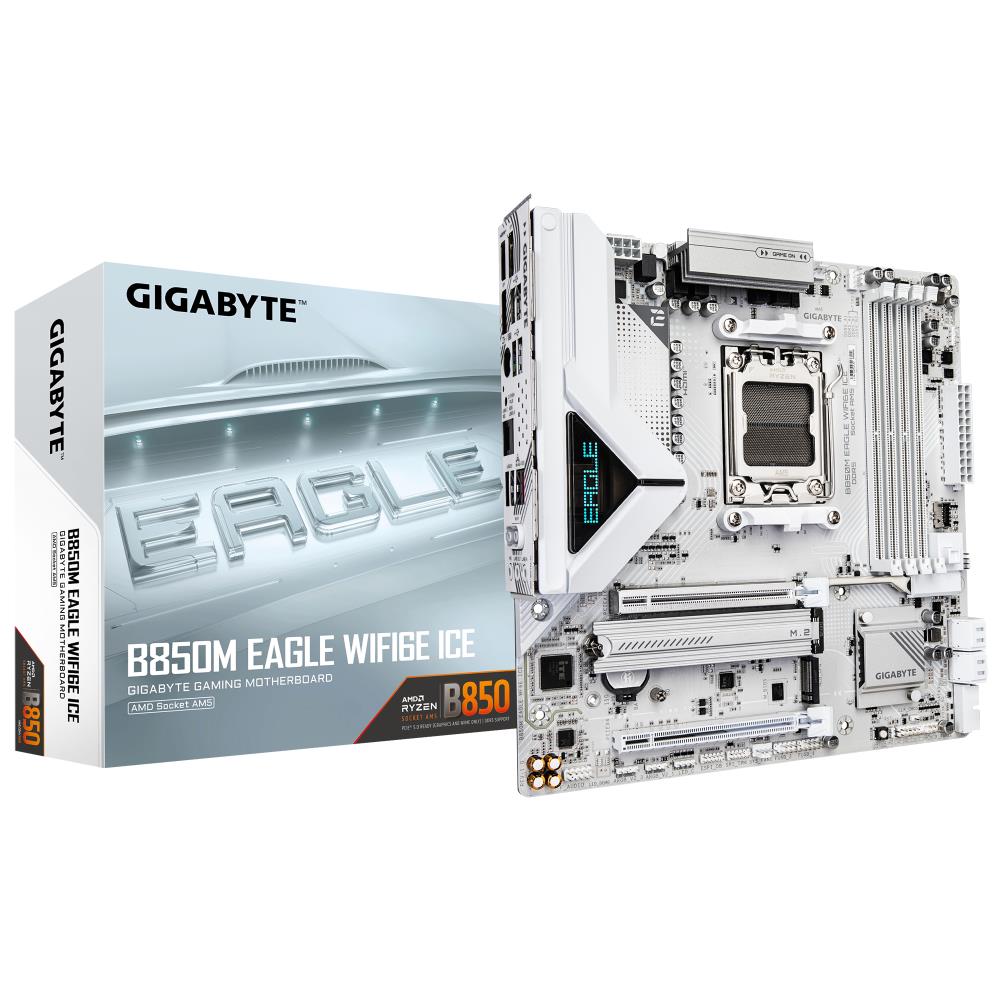

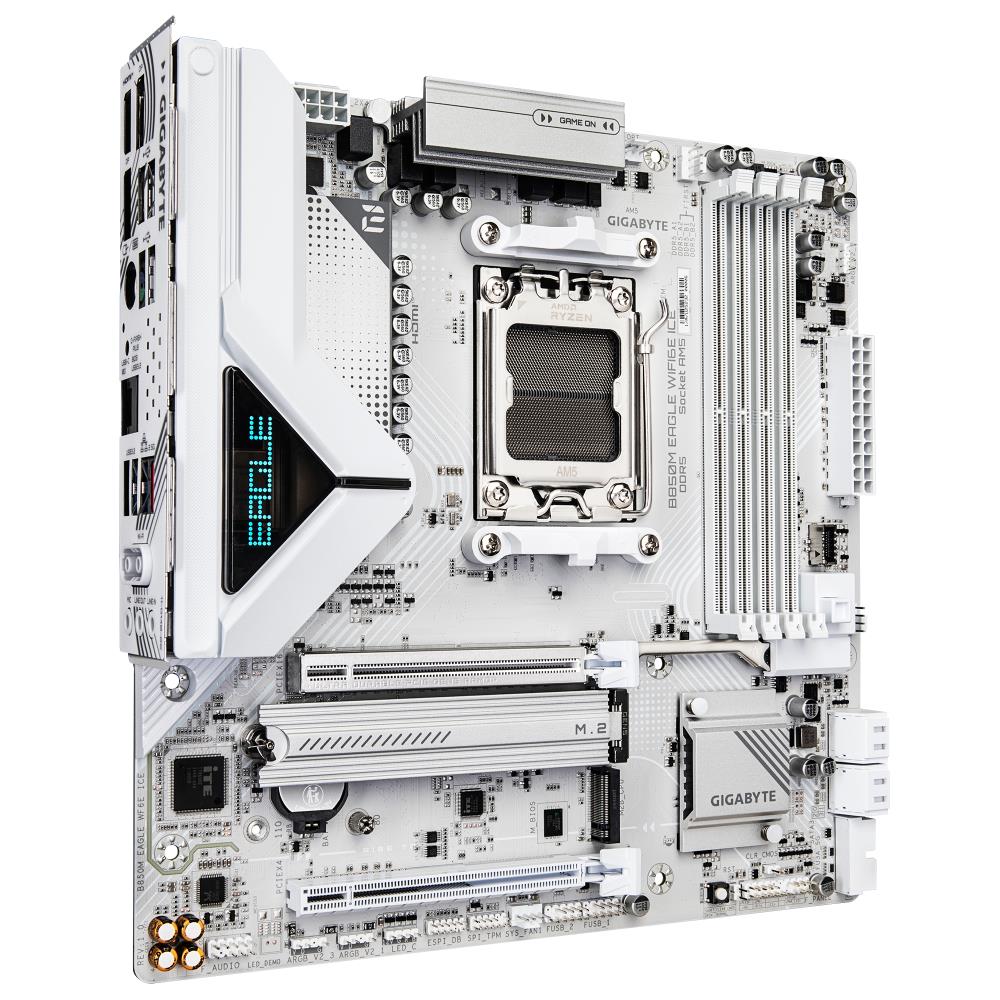

GIGABYTE B850M EAGLE WIFI6E ICE

• X3D Turbo Mode : Unleash new era gaming performance
• DDR5 OC up to 8200MT/s
• AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
• Digital twin 8+2+2 phases VRM solution
• Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support
• WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
• EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
• EZ-Latch Click : M.2 heatsinks with screwless design
• Ultra-Fast Storage : 2*M.2 slots, including PCIe 5.0 x4
• Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard
• Fast Networking : 2.5 GbE LAN & Wi-Fi 6E with directional Ultra-high gain antenna
• Extended Connectivity : HDMI, 2*Displayport
• PCIe UD Slot : SMD PCIe 5.0 Armor for enhanced graphics card support

Vendor Homepage: www.gigabyte.com/Motherboard/B850M-EAGLE-WIFI6E-ICE
Category Code: MBA
CnCode: 84733020
Unit Box Height: 0.07
Unit Box Length: 0.275
Unit Box Width: 0.269
M.2: 2
PCI-Express 3.0 4x: 1
PCI-Express 4.0 4x : 1
PCI-Express 4.0 8x: 1
PCI-Express 5.0 16x: 1
Audio port: 3
DisplayPort: 2
HDMI: 1
PS/2: 1
RJ45: 1
USB 2.0: 4
USB 3.2: 3
USB-C: 1
Bluetooth: Yes
SATA: Yes
USB 2.0: Yes
USB 3.2: Yes
USB-C: Yes
WiFi: Yes
Model: B850M EAGLE WIFI6E ICE
Chipset: AMD B850
Socket: SAM5
Form Factor: Micro-ATX
Memory type: DDR5
Frequency speed: 4400/4800/5200/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/7900/7950/8000/8200
Memory slots: 4
Integrated video: Depending on CPU
Integrated audio: Yes
Integrated LAN: 2.5 Gigabit
RAID: SATA 0, 1, 10; NVMe 0, 1, 5, 10
TPM: Header
Units per Shipping Box: 8
Unit Calculated Volume: 0.007341
Product Net Weight: 0.8
Unit Calculated Weight: 1.46
