Mainboard GIGABYTE AMD B550 SAM4 ATX Memory DDR4 Memory slots 4 4xPCI-Express 3.0 1x 1xPCI-Express 4.0 16x 2xM.2 1xHDMI 4xUSB 2.0 1xUSB 3.2 type B 2xUSB 3.2 1xUSB-C 1xRJ45 3xAudio port B550EAGLE1.0

Description:

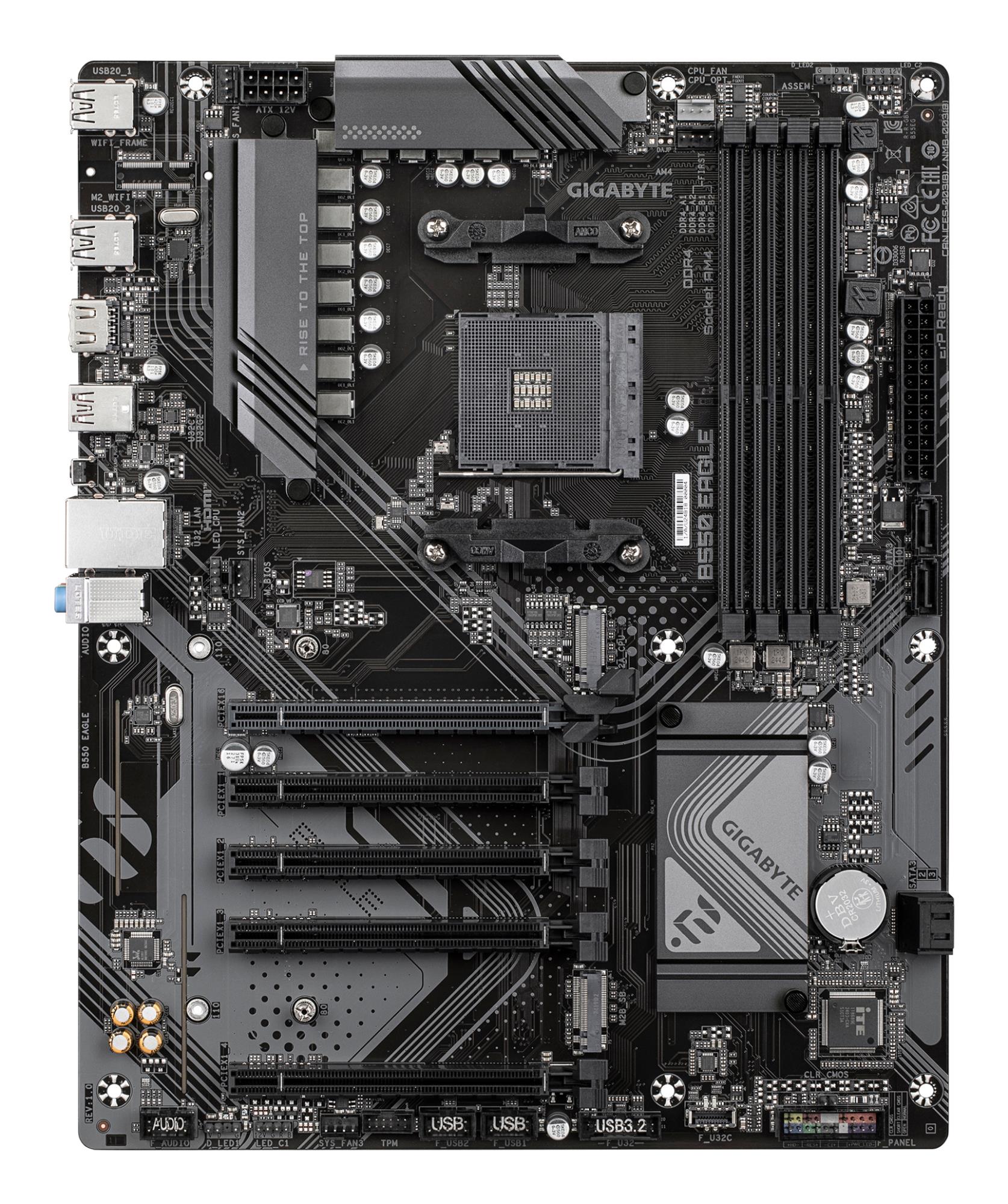

B550 EAGLE

• AMD Socket AM4 : Supports AMD Ryzen™ 5000 / 4000 / 3000 Series Processors
• Digital twin 10+3 phases VRM solution
• Dual Channel DDR4 : 4*DIMMs
• EZ-Latch : PCIe slots with Quick Release Design
• Ultra-Fast Storage : 2*M.2 slots, including PCIe 4.0 x1
• Efficient Thermal : VRM Thermal Armor Advanced
• Fast Networking : GbE LAN
• Extended Connectivity : HDMI
• PCIe UD Slot : PCIe 4.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect

Vendor Homepage: www.gigabyte.com/Motherboard/B550-EAGLE#kf
Category Code: MBA
CnCode: 84733020
Unit Box Height: 0.08
Unit Box Length: 0.335
Unit Box Width: 0.275
M.2: 2
PCI-Express 3.0 1x: 4
PCI-Express 4.0 16x: 1
Audio port: 3
HDMI: 1
RJ45: 1
USB 2.0: 4
USB 3.2: 2
USB 3.2 type B: 1
USB-C: 1
SATA: Yes
USB 2.0: Yes
USB 3.2: Yes
USB-C: Yes
Model: B550 EAGLE
Chipset: AMD B550
Socket: SAM4
Form Factor: ATX
Memory type: DDR4
Frequency speed: 2133/2400/2667/2933/3200
Memory slots: 4
Integrated video: Depending on CPU
Integrated audio: Yes
Integrated LAN: Gigabit
RAID: SATA 0, 1, 10; NVMe 0, 1, 10
Units per Shipping Box: 8
Unit Calculated Volume: 0.01011
Product Net Weight: 0.7
Unit Calculated Weight: 1.47
