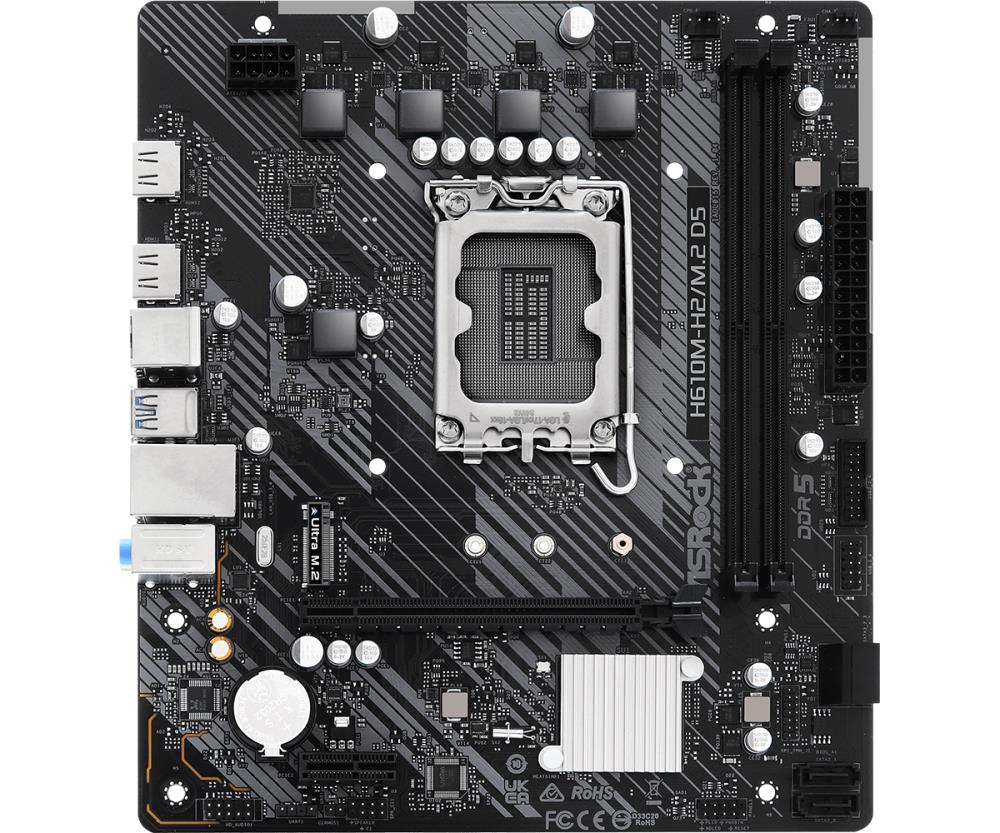

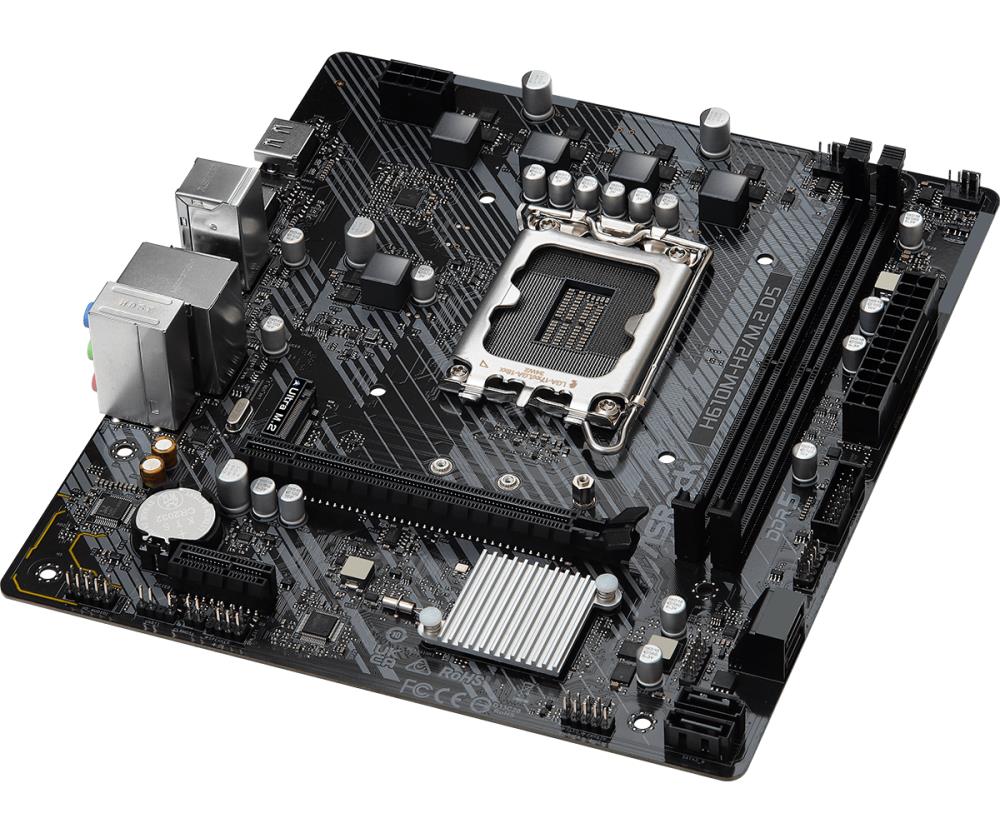

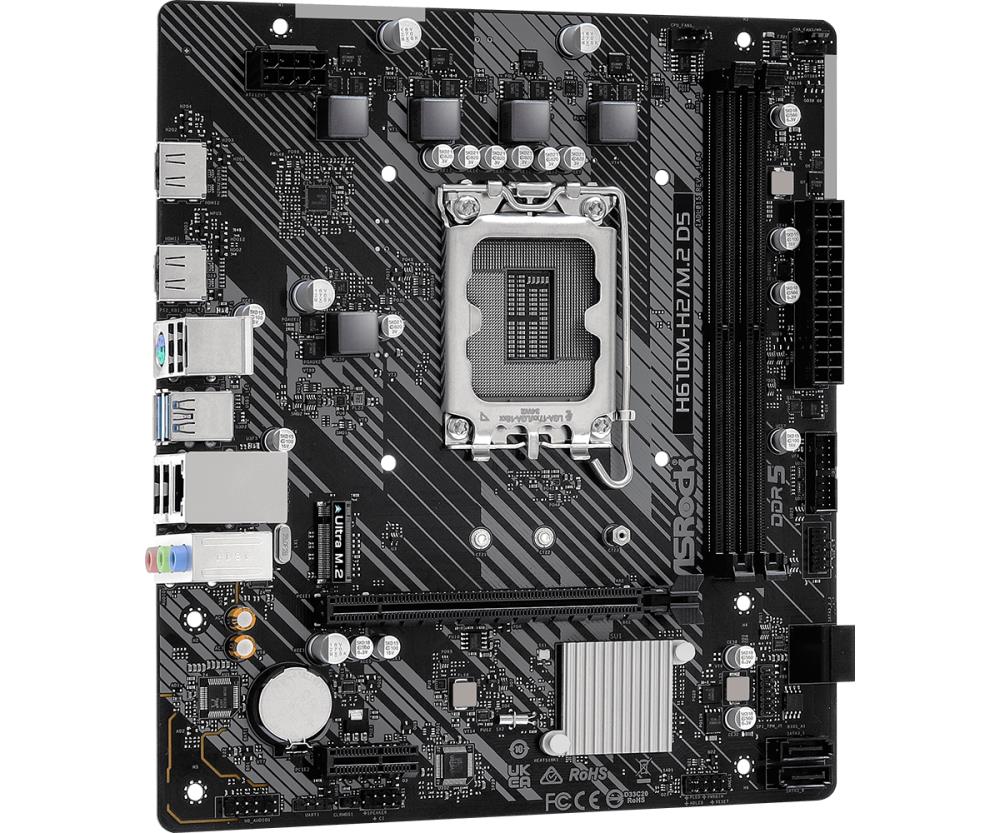

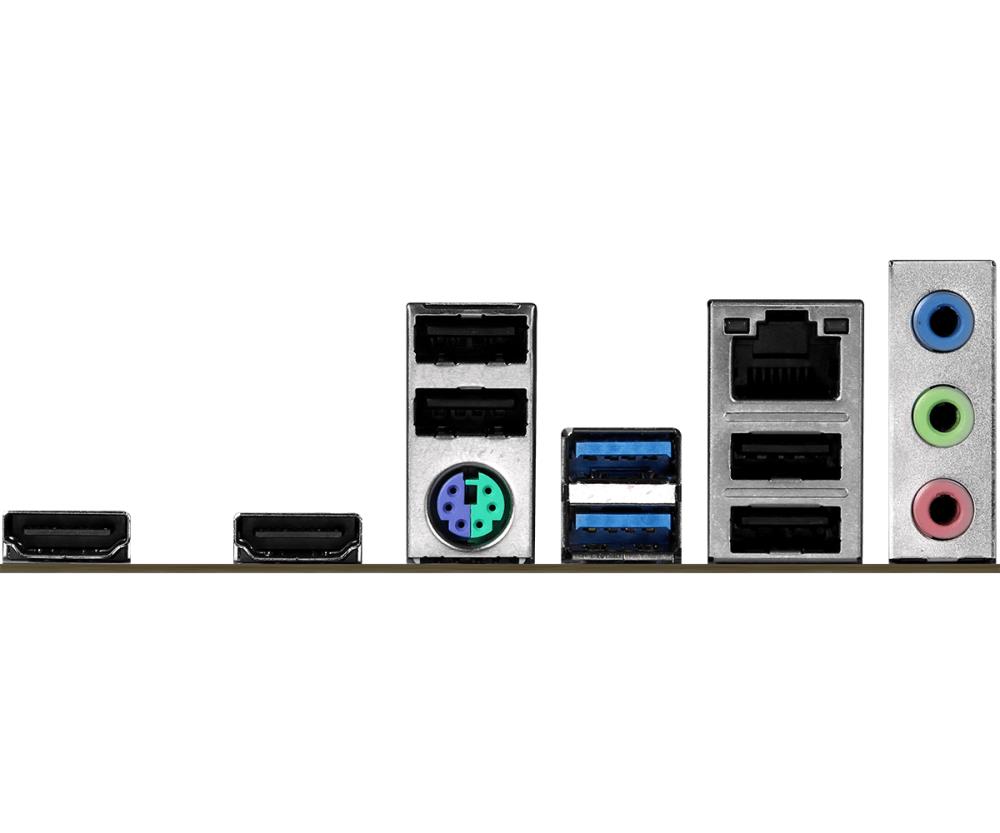

Mainboard ASROCK Intel H610 LGA1700 Micro-ATX Memory DDR5 Memory slots 2 1xPCI-Express 3.0 1x 1xPCI-Express 4.0 16x 1xM.2 2xHDMI 4xUSB 2.0 2xUSB 3.2 1xPS/2 1xRJ45 3xAudio port H610M-H2/M.2D5

Description:

• Supports 14th, 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
• 3+1+1 Phase Power Design
• Supports DDR5 5600MHz*
• 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
• Graphics Output Options: 2 HDMI
• Realtek ALC897 7.1 CH HD Audio Codec
• 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4)
• 4 USB 3.2 Gen1 (2 Rear, 2 Front)
• 6 USB 2.0 (4 Rear, 2 Front)
• Realtek Gigabit LAN
• Supports ASRock Auto Driver Installer *Actual support may vary by CPU.

Vendor Homepage: www.asrock.com/MB/Intel/H610M-H2M.2%20D5/index.asp
Category Code: MBI
CnCode: 84733020
Unit Box Height: 0.06
Unit Box Length: 0.277
Unit Box Width: 0.241
M.2: 1
PCI-Express 3.0 1x: 1
PCI-Express 4.0 16x: 1
Audio port: 3
HDMI: 2
PS/2: 1
RJ45: 1
USB 2.0: 4
USB 3.2: 2
SATA 3.0: Yes
USB 2.0: Yes
USB 3.2: Yes
Model: H610M-H2/M.2 D5
Chipset: Intel H610
Socket: LGA1700
Form Factor: Micro-ATX
Memory type: DDR5
Frequency speed: 4800/5600
Memory slots: 2
Integrated video: Depending on CPU
Integrated LAN: Gigabit
Integrated audio: Realtek ALC897
TPM: Header

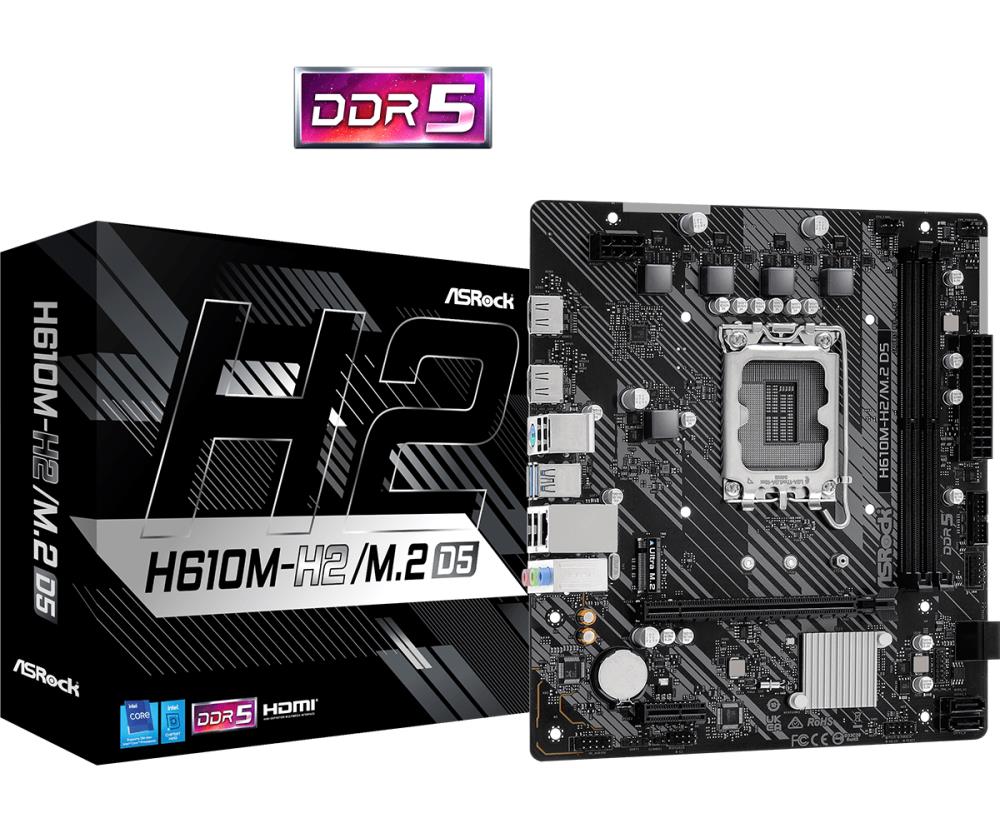

Included Accessories: – 1 x User Manual
– 1 x I/O Shield
– 2 x SATA Data Cables
– 1 x Screw for M.2 Socket
Units per Shipping Box: 20
Unit Calculated Volume: 0.004544
Product Net Weight: 0.7
Unit Calculated Weight: 0.76
