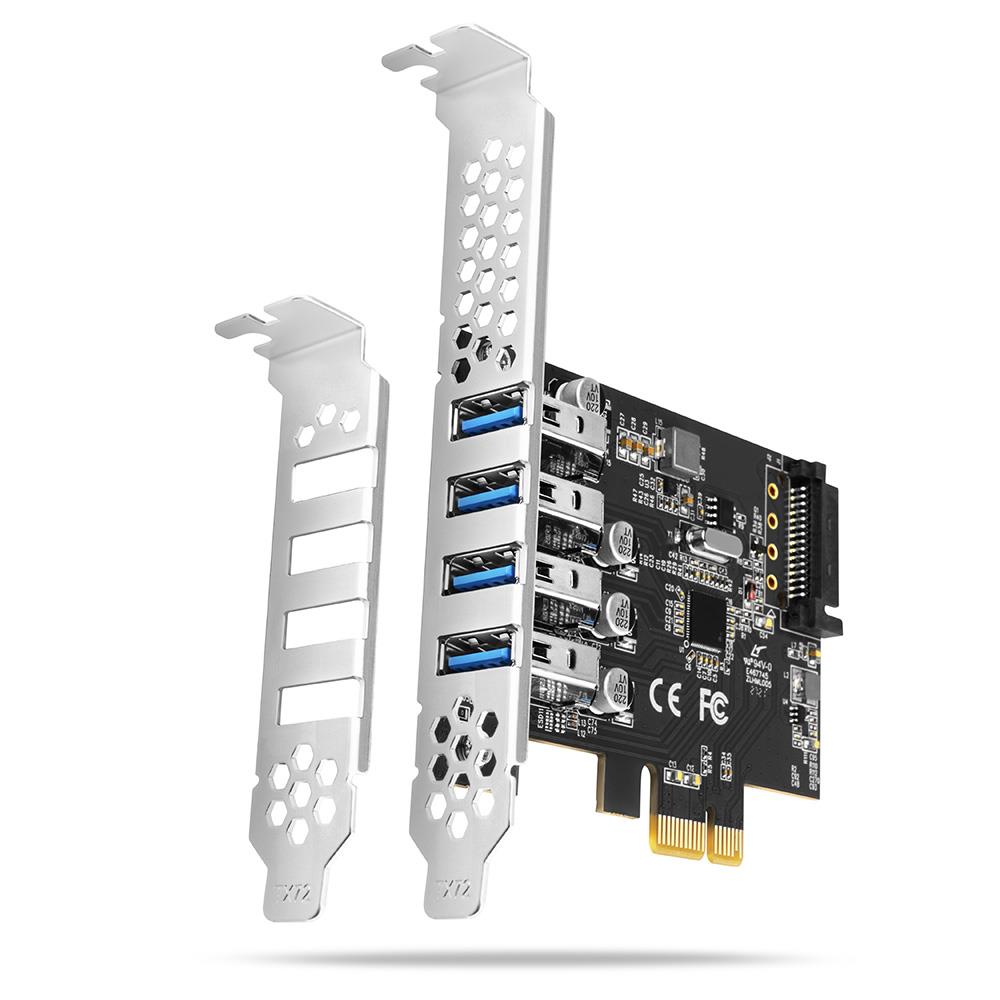

I/O CARD USB PCIE 4PORT/PCEU-43RS AXAGON

Description:

PCEU-43RS PCIe controller 4x SuperSpeed USB
PCI-Express card with four external USB 3.2 Gen1 ports with dual power. Renesas chipset. Standard & Low profile.

AXAGON PCEU-43RS PCI-Express card adds four external USB 3.2 Gen 1 ports to your desktop computer. The card is designed for fast data transfers at speeds up to 5 Gb/s.

All four SuperSpeed USB ports are taken out to the bracket. The dual power supply of the controller enables standard power supply of the controller and connected USB peripherals via the PCI-Express bus as well as optional power supply from the PC power supply via the SATA power connector.

The USB controller is equipped with a renowned Renesas company chipset with proven seamless compatibility, high performance and UASP support.

Low profile bracket is included in the package for mounting the adapter into low profile cases.

Vendor Homepage: www.axagon.eu/en/produkty/pceu-43rs?ami=214
Category Code: IOC
CnCode: 84733020
Unit Box Height: 0.145
Unit Box Length: 0.025
Unit Box Width: 0.11
USB 3.2: 4
Model: PCEU-43RS
Included Accessories: – PCI-Express controller with a standard size bracket
– low profile braket
– installation guide
Units per Shipping Box: 1
Unit Calculated Volume: 0.0003988
Product Net Weight: 0.05
Unit Calculated Weight: 0.09
