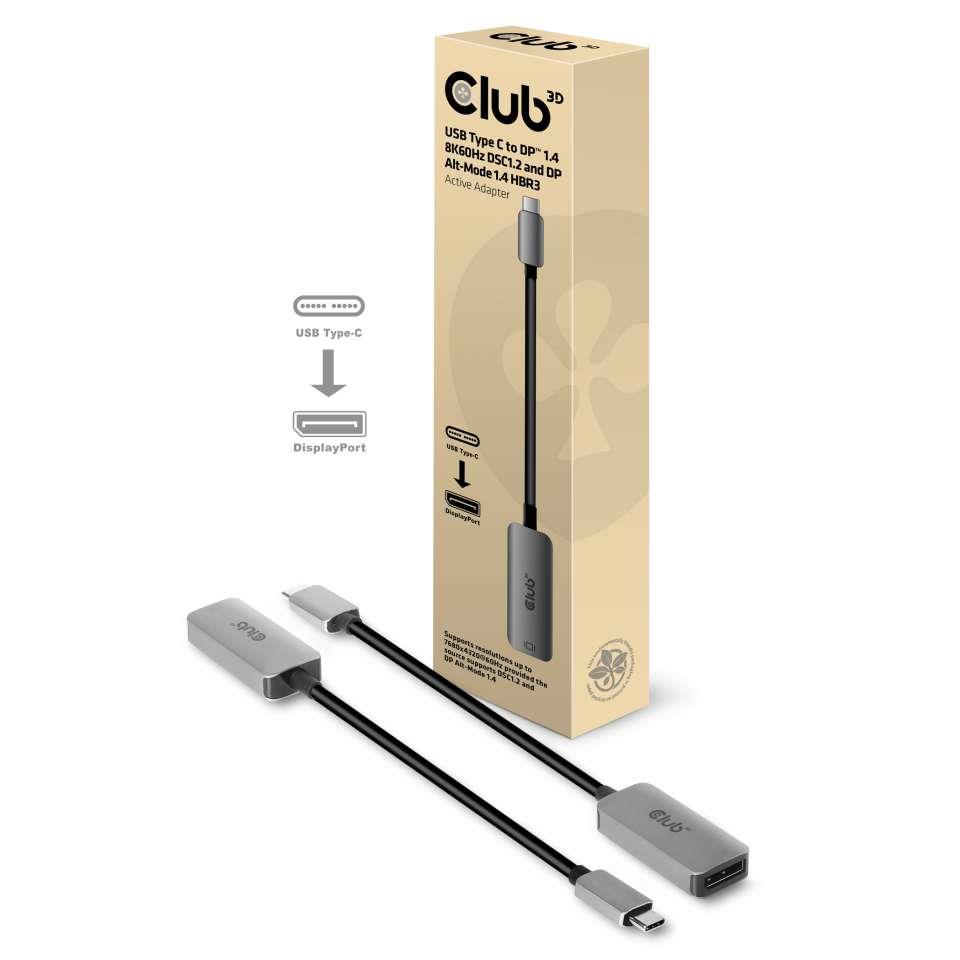

I/O ADAPTER USB-C TO DP/M/F CAC-1567 CLUB3D

Description:

USB Type C to DisplayPort 1.4 8K60Hz HBR3 Active Adapter.
The CAC-1567 Club 3D USB Type C to DisplayPort™ 1.4 Adapter 8K60Hz provided the source supports DSC1.2 HBR3 allows you to connect any USB Type C source to DisplayPort™ display at max 8K60Hz resolution and HDR support.

It works on any USB Type C host that supports DP 1.4/DP 1.2 Alt mode, resolutions are limited to the source device. When working on Thunderbolt™ 3 host, this product transmits DP signal.
The soft UltraFlex jacket protects the cable from bends and deformation damage. The Cable is 34AWG and Uni-Directional.
• Supports USB Type C input and DisplayPort™ output
• Supports DisplayPort™ resolutions up to 7680×4320@60Hz HDR, provided the source supports DSC1.2 and DP Alt-Mode 1.4
• Supports DisplayPort™ 1.4/1.2 Alt mode
• Compliant to Thunderbolt 3 specifications
• Supports per lane data rates of 8.1Gbps(HBR3), 5.4Gbps (HBR2), 2.7Gbps (HBR) and 1.62Gbps (RBR)
• Support up to 48 bit (16bit per channel) deep color
• Supports content protection of HDCP1.4 & HDCP 2.2
• USB bus power (no external power supply)

Vendor Homepage: www.club-3d.com/en/detail/2487/usb_type_c_to_displayport_1.4_8k60hz_hbr3_active_adapter/
Category Code: IOC
CnCode: 84733080
Unit Box Height: 0.24
Unit Box Length: 0.06
Unit Box Width: 0.035
DisplayPort: 1
USB-C: 1
Model: CAC-1567
Product Type: Adapter
Units per Pallet: 0
Units per Shipping Box: 1
Unit Calculated Volume: 0.000504
Product Net Weight: 0.024
Unit Calculated Weight: 0.05
