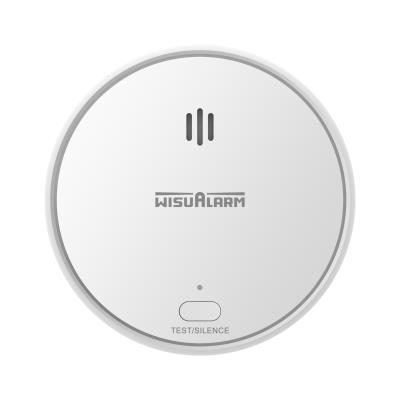

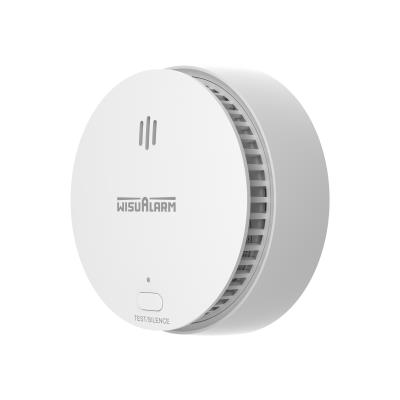

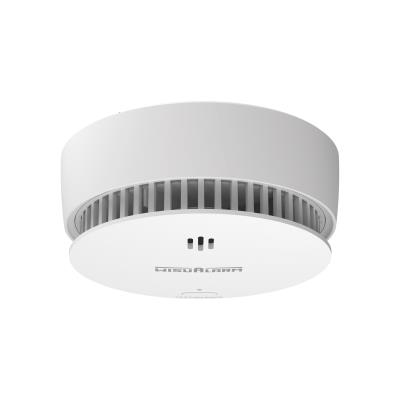

DETECTOR SMOKE ALARM/STANDALONE HY-SA20A DAHUA

Description:

• Split-spectrum sensor technology
• Test and hush features in one single button
• Loud sound output over 85 dB(A) at 3 meters
• Low quiescent current consumption
• Surface-mount device (SMD) circuit board design
• Low battery warning signal
• Battery Life: 10 year, 3V CR123A lithium battery (replaceable)
• TÜV and CE listed, EN 14604:2005+AC:2008

Vendor Homepage: www.dahuasecurity.com/products/All-Products/Fire-Alarm/Smoke-Alarms/HY-SA20A
Category Code: MDE
CnCode: 85311030
Unit Box Height: 0.055
Unit Box Length: 0.135
Unit Box Width: 0.105
Model: HY-SA20A
Detector Type: Fire
Operating temperature range: -10°C to +55°C
Power supply requirements: 3V CR123A lithium battery (replaceable)
Colour: White
Dimensions: φ98 mm × H43.1 mm
Units per Shipping Box: 1
Unit Calculated Volume: 0.0007796
Product Net Weight: 0.136
Unit Calculated Weight: 0.18
