Description:

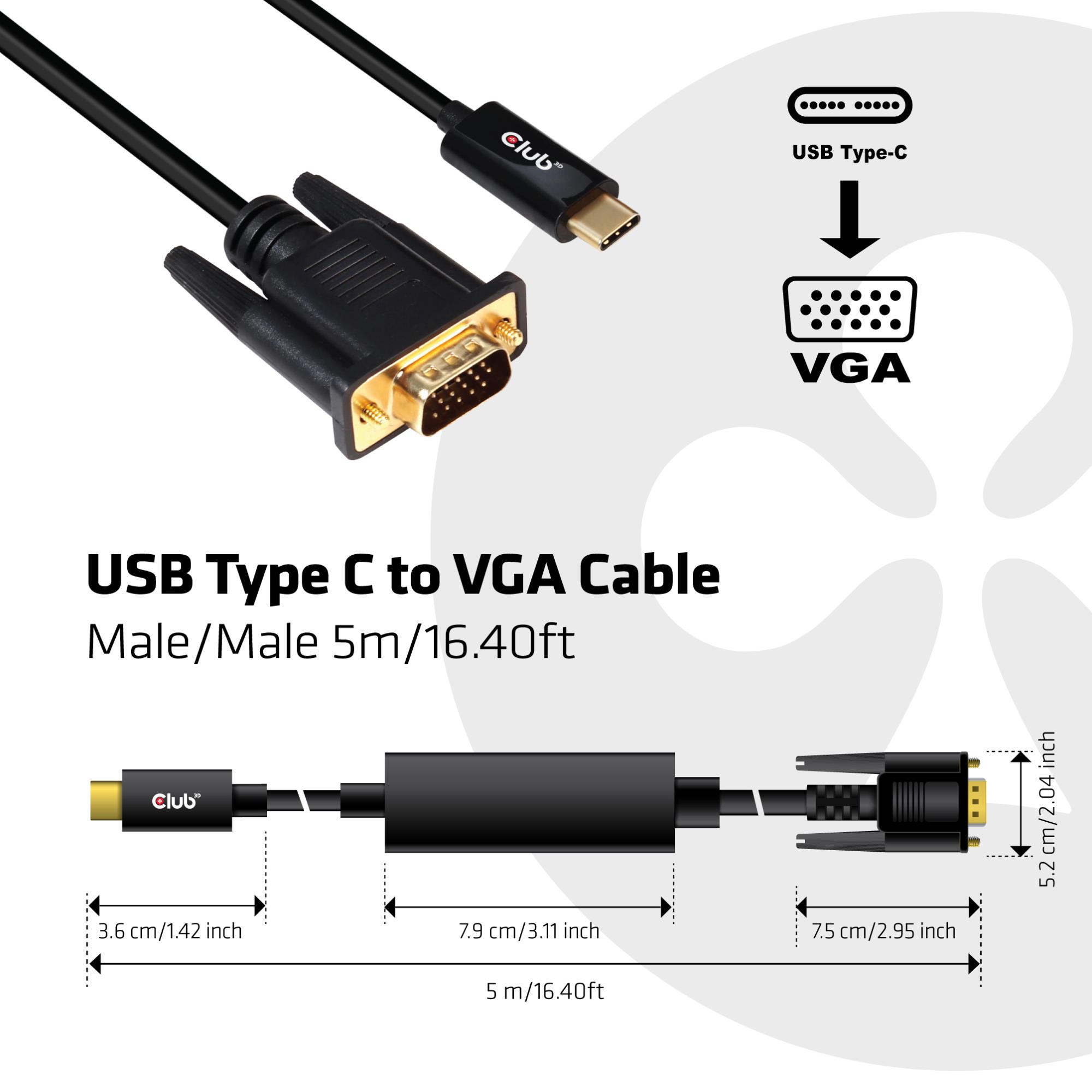

USB Type C to VGA Cable Male/Male 5m/16.40ft.
• Supports DP1.1 Specifications
• Supports MainLink 1Lane HBR (High Bit Rate)at 2.7Gbit/s per lane and 2 lanes at RBR (Reduced Bit Rate) 1.62Gbit/s per lane
• This cable is USB powered and consumes approximately 200mW of power for video streaming in WUXGA
• Supports Analog RGB Current source outputs
• Supports 3.3V VSYNC and HSYNC outputs
• Pixel Clock up to 240Mhz
• Triple 8 Bit Digital to Analog Converter (DAC)
• Supports 6, 8 Bits per color
• Supports RGB formats
Vendor Homepage: www.club-3d.com/en/detail/2469/usb_type_c_to_vga_active_cable_m-m_5m-16.40ft/
Category Code: VCB
CnCode: 85444290
Unit Box Height: 0.175
Unit Box Length: 0.17
Unit Box Width: 0.045
Product Type: Cable
Model name: CAC-1512
Cable length: 5m
Connectors: USB Type C Male – VGA Male
Units per Pallet: 0
Units per Shipping Box: 1
Unit Calculated Volume: 0.001339
Product Net Weight: 0.245
Unit Calculated Weight: 0.32
